Plan #1041

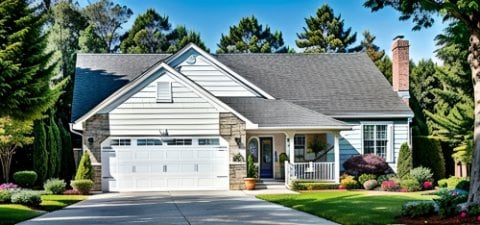

Plan # 1041 - Ranch | Large render view

Description

2 bed 2 bath ranch with vaulted ceilings, bay window dining, Jacuzzi tub and a wrap around front porch. The basement can be finished to add a family room, 2 more bedrooms, and a full bath.

Specifications

  • 1041 sq ft
  • 40′ wide x 48′ deep
  • 2 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Large Closet
  • Bay Window
  • Covered Porch
  • Fireplace

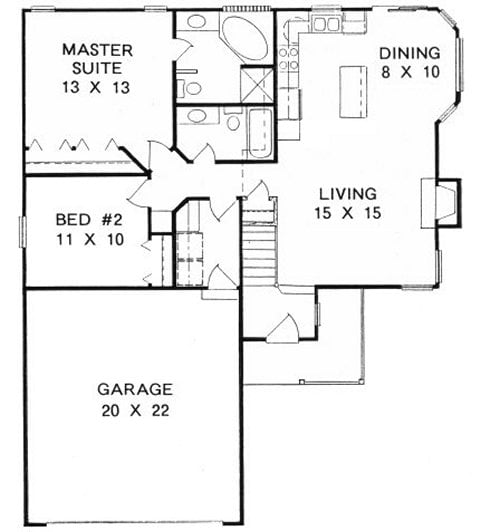

Floor Plan

Plan # 1041 - Ranch | First floor plan
Copyright 1997 ADG, Inc.

Elevation

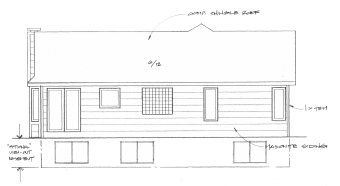

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1041 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' plates
L=144' (insulated)

Ceilings

Vaulted - Living,
Dining & Kitchen

Basement

Approx. 900 sq. ft
Full Basement (w/View-out option)

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 178 sq. ft
Front only (Includes
front offsets)

Kitchen

Approx. 8' x 10'
Base cabs L=16'
Upper cabs L=13'

Misc

Csmt windows
W/B Fireplace
