Plan #1172

Plan # 1172 - Ranch | Large render view

Specifications

  • 1172 sq ft
  • 60′ wide x 34′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Covered Porch
  • Walk-In Closet
  • Fireplace

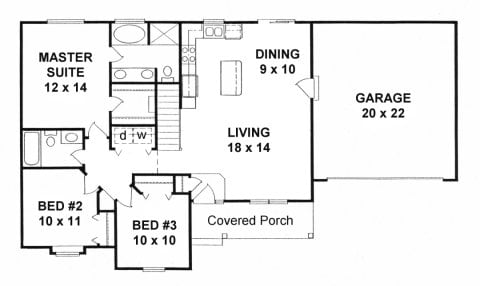

Floor Plan

Plan # 1172 - Ranch | First floor plan
Copyright 2000 ADG, Inc.

Elevation

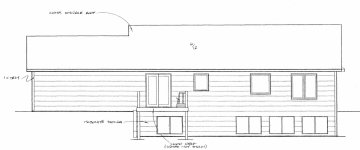

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1172 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' plates
L=148' (insulated)

Ceilings

Vaulted - Living,
Dining & Kitchen

Basement

Approx. 1078 sq. ft
View-out (rear)

(Opt'l Finish)

Rec room
1 Bedroom
Full Bath

Masonry

Approx. 184 sq. ft
Front only (Includes front offsets)

Kitchen

Approx. 8' x 10'
Base cabs L=16'
Upper cabs L=13'

Misc

Csmt windows
