Plan #2080

Plan # 2080 - Bi-Level Duplex Plan | Large render view

Specifications

  • 2080 sq ft
  • 56′ wide x 42′ deep
  • 2 bedrooms
  • 1 bath

Features

  • Bay Window
  • Covered Porch
  • 11' Ceilings

Floor Plan

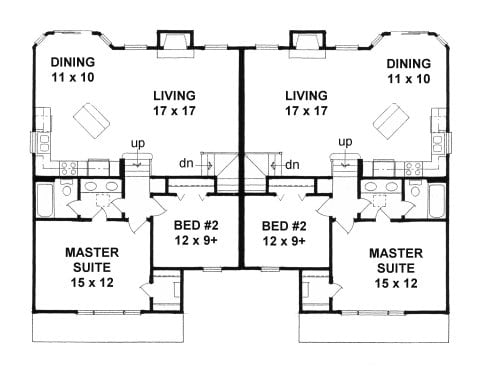

Plan # 2080 - Bi-Level Duplex Plan | First floor plan

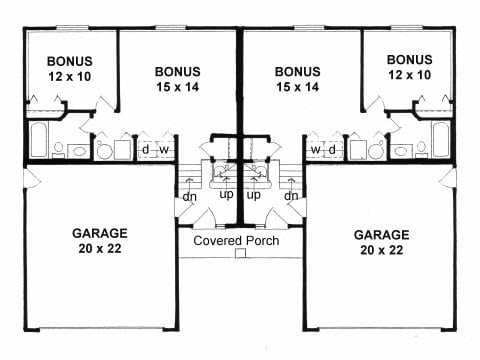

Copyright 1970 ADG, Inc. Plan # 2080 - Bi-Level Duplex Plan | Second floor plan

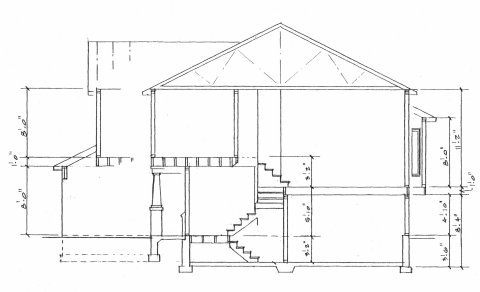

Elevation



Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

2080 sq. ft
(each unit has
1040 sq ft)

Roof

Truss
6/12 pitch

Floor

Truss or TJI

Walls

8' plates
L=218'
(insulated,
including party
wall)

Ceilings

11'- Living,
Dining & Kitchen

Basement

Approx. 494 sq. ft
(each unit)

(Opt'l Finish)

1 Bedroom
Full Bath

Masonry

Approx. 144 sq. ft
(including front offsets)

Kitchen

Approx. 11' x 9'
Base cabs L=16'
Upper cabs L=13'

Misc

Csmt windows
Gas Log fireplace
