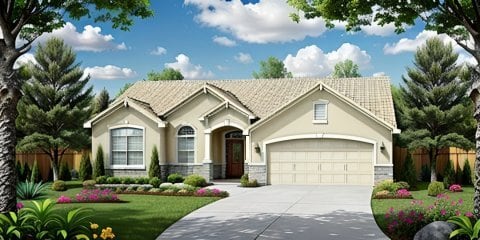

3-Bedroom Ranch House Plan — 1,108 Sq Ft (Plan 1108)
by American Design Gallery
Ranch with 3 (split) bedrooms and 2 baths
Features
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings

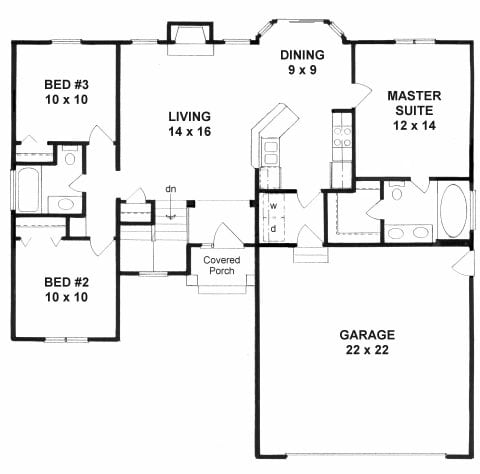

Floor Plan
Copyright 2026 ADG, Inc.

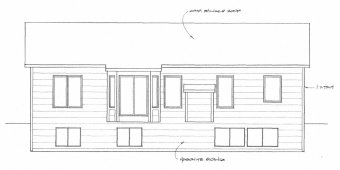

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1108 (46' × 44') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1108
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1108 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
9' plates L=158' (insulated)
Ceilings
9' - Thru-out
Basement
Approx. 1004 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms 3/4 Bath
Masonry
Approx. 170 sq. ft Front only (Includes front offsets)
Kitchen
Approx. 10' x 8 1/2' Base cabs L=13' Upper cabs L=10'
Misc
Csmt windows Gas log Fireplace 72" x 42" Tub
About Plan #1108
Split bedroom privacy with an open living area in between. Features include a raised bar, fireplace, Bay window Dining and vaulted ceilings. The vaulted Master suite includes a 6' tub/shower, Jack & Jill vanity and a walk-in closet.
