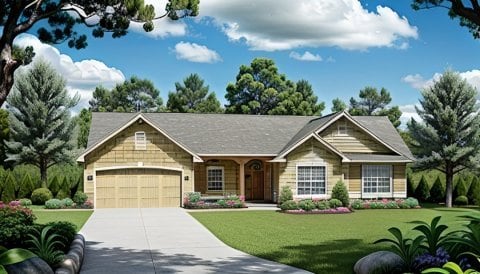

3-Bedroom Ranch House Plan — 1,420 Sq Ft (Plan 1420)
by American Design Gallery
3 bedroom Ranch w/ Bay windows and tandem 3-Car Garage
1,420Sq Ft
3Bedrooms
2Baths
1Stories
58'Width
48'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

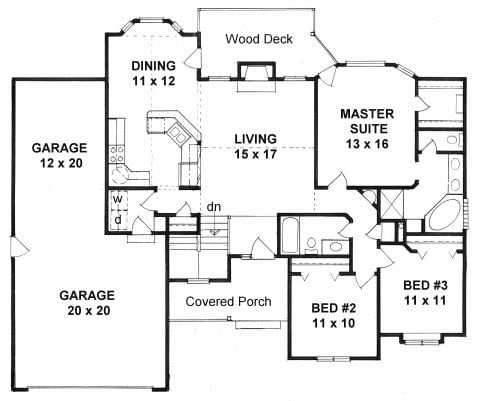

Floor Plan
Copyright 2026 ADG, Inc.

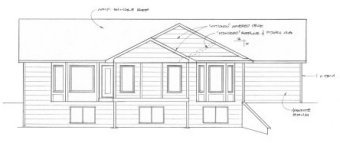

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1420 (58' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1420
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1420 sq. ft
Roof
Truss 6/12 main pitch 8+/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=190' (insulated
Ceilings
Vaulted - Living, Dining, Kitchen & MBR
Basement
Approx. 1264 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 252 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=16' Upper cabs L=16'
Misc
Csmt windows Gas-log Fireplace 24" Broom closet
