3-Bedroom Ranch House Plan — 1,640 Sq Ft (Plan 1640)
by American Design Gallery
3-Car Garage, bonus room and walk-in pantry
1,640Sq Ft
3Bedrooms
2Baths
1Stories
52'Width
52'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry
Floor Plans

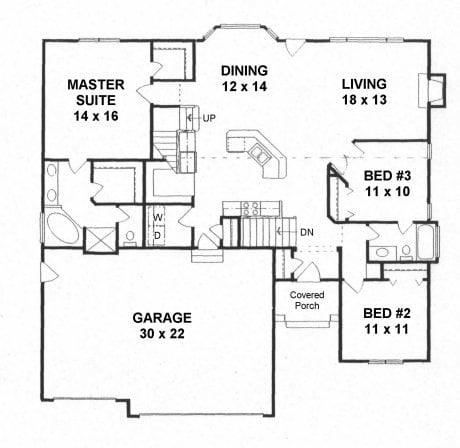

First Floor

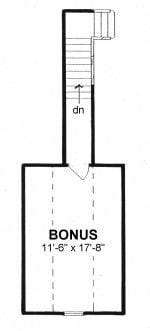

Second Floor
Copyright 2026 ADG, Inc.

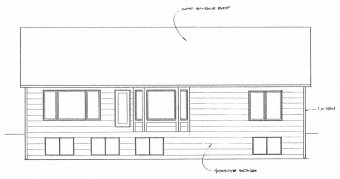

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1640 (52' × 52') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1640
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1640 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
TJI
Walls
8' plates L=194' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen, MBR, Bed. #2 & Bed #3
Basement
Approx. 1503 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 225 sq. ft Front only (includes front offsets & left side of garage)
Kitchen
Approx. 14' x 11' Base cabs L=16' Upper cabs L=13' Walk-in Pantry
Misc
Csmt windows Gas-log Fireplace
