2-Bedroom Ranch House Plan — 1,012 Sq Ft (Plan 1012)

by American Design Gallery

Cottage plan

Plan #1012

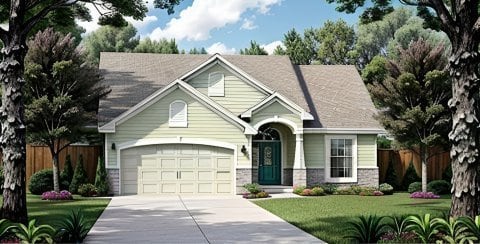

Plan # 1012 - Ranch | Small render view

Specifications

  • ●1012 sq ft
  • ●40' wide x 46' deep
  • ●2 bedrooms
  • ●1 baths

Features

  • ●Vaulted Ceilings
  • ●Bay Window
  • ●Covered Porch
  • ●Covered Deck
  • ●Walk-In Closet
  • ●Fireplace

Floor Plan

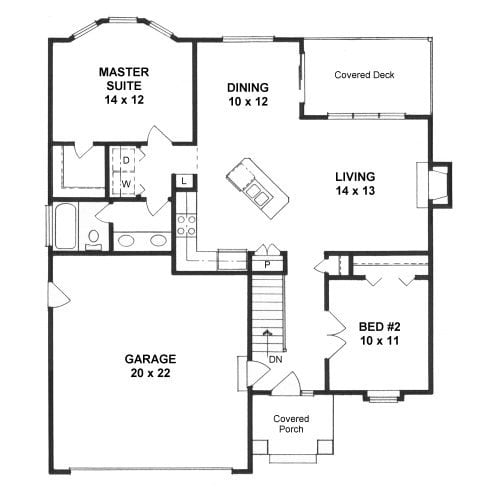

First Floor plan for #1012

Copyright 2026 ADG, Inc.

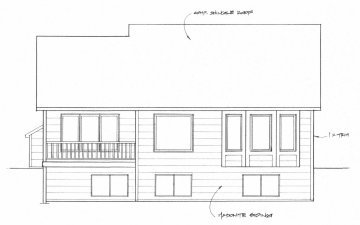

Elevation

Elevation 1 for Plan #1012

Loading...

Unlimited Licensing

  • ✓Print as many copies as you need
  • ✓Have changes made by your local draftsman
  • ✓Share with your builder, engineer, and permitting office
  • ✓One-time purchase, no recurring fees

Details

Heated Area

1012 sq. ft

Roof

Truss 6/12 main pitch 8/12 front pitch

Floor

Truss or TJI

Walls

8' plates L=148' (insulated)

Ceilings

Vaulted - Living, Dining, Kitchen, Foyer & MBR

Basement

Approx. 914 sq. ft View-out

Opt'l Finish

Rec room 2 Bedrooms Full Bath

Masonry

Approx. 200 sq. ft Front only (Includes front offsets)

Kitchen

Approx. 11' x 10' Base cabs L=14' Upper cabs L=13'

Misc

Csmt windows Gas log Fireplace 36" Pantry

Similar Plans

About Plan #1012

This 2 bedroom ranch is designed with a vaulted and open living area wrapped around the covered deck. The bedrooms are separated with the bath and utilities located in the Master wing and French doors off the foyer for an office or den option at bedroom #2.
