2-Bedroom Ranch House Plan — 1,033 Sq Ft (Plan 1033)

by American Design Gallery

2 Bedroom Ranch with walk-in pantry

Plan #1033
Plan # 1033 - Ranch | Small render view

Specifications

  • ●1033 sq ft
  • ●40' wide x 48' deep
  • ●2 bedrooms
  • ●2 baths

Features

  • ●Vaulted Ceilings
  • ●Plant Shelves
  • ●Bay Window
  • ●Covered Porch
  • ●Walk-In Closet
  • ●Fireplace
  • ●Walk-In Pantry

Floor Plan

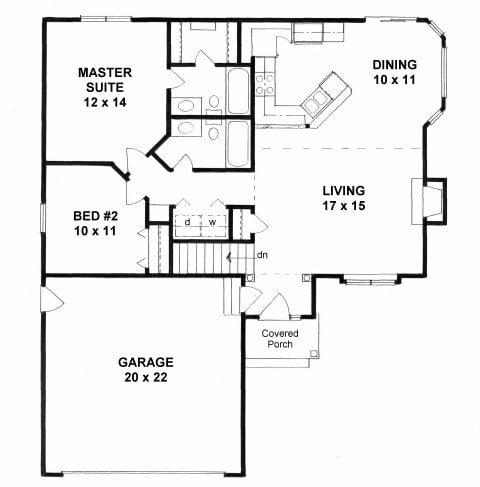

First Floor plan for #1033

Copyright 2026 ADG, Inc.

Elevation

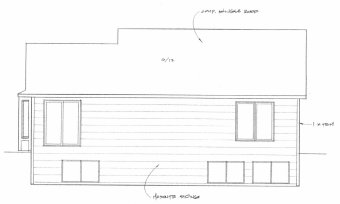

Elevation 1 for Plan #1033

Loading...

Unlimited Licensing

  • ✓Print as many copies as you need
  • ✓Have changes made by your local draftsman
  • ✓Share with your builder, engineer, and permitting office
  • ✓One-time purchase, no recurring fees

Details

Heated Area

1033 sq. ft

Roof

Truss 6/12 main pitch 8/12 front pitch

Floor

Truss or TJI

Walls

8' plates L=140' (insulated)

Ceilings

Vaulted - Living, Dining, Kitchen & MBR

Basement

Approx. 978 sq. ft View-out

Opt'l Finish

Rec room 1 Bedroom Full Bath

Masonry

Approx. 120 sq. ft Front only (Includes front offset)

Kitchen

Approx. 9' x 10' Base cabs L=15' Upper cabs L=15'

Misc

Csmt windows Gas-log Fireplace Walk-in Pantry

Similar Plans

About Plan #1033

2 bedroom 2 bath single story home with vaulted ceilings, bay window dining, walk-in pantry, raised breakfast bar and a fireplace. Another bedroom, bath and family room can be finished in the daylight basement.
