2-Bedroom Ranch House Plan — 1,103 Sq Ft (Plan 1103)
by American Design Gallery
Ranch style small house plan w/ Bay windows
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace

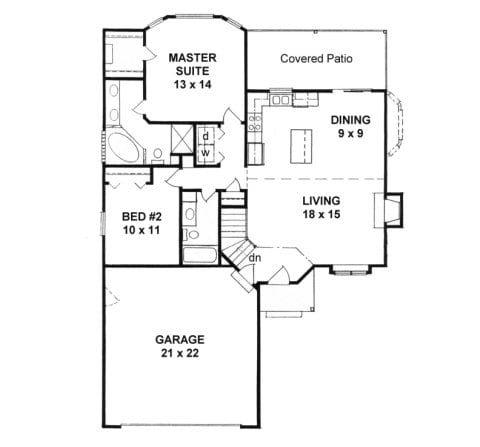

Floor Plan
Copyright 2026 ADG, Inc.

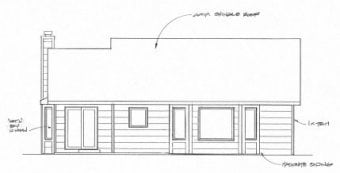

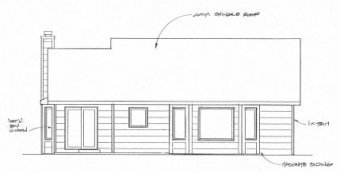

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1103 (40' × 56') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1103
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1103 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=154' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen, & MBR
Basement
Approx. 1002 sq. ft Full Basement
Opt'l Finish
Rec room 2 Bedrooms (w/ walk-in closets) Full Bath
Masonry
Approx. 162 sq. ft Front only (Includes front offsets)
Kitchen
Approx. 10' x 8 1/2' Base cabs L=16' Upper cabs L=16'
Misc
Csmt windows W/B Fireplace
About Plan #1103
This Master Suite features a Bay window, vaulted ceiling, walk-in closet, Jacuzzi tub, 4' shower and a double vanity. The living area is also vaulted with plant shelves, front window seat, optional bay window dining and a covered rear deck.
