3-Bedroom Ranch House Plan — 1,146 Sq Ft (Plan 1146)
by American Design Gallery
Bi-level starter home w/ 3 bedrooms
1,146Sq Ft
3Bedrooms
2Baths
1Stories
52'Width
46'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Large Closet
- ●Covered Porch
- ●Fireplace

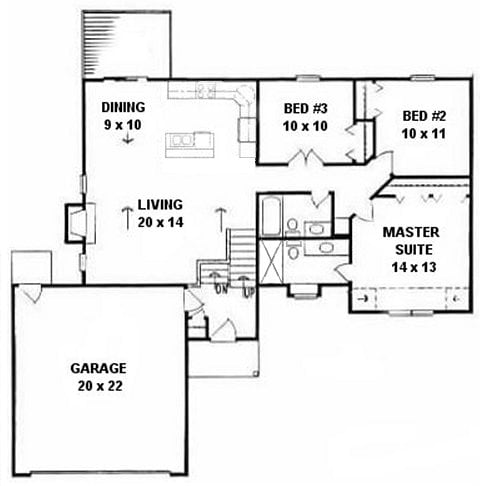

Floor Plan
Copyright 2026 ADG, Inc.

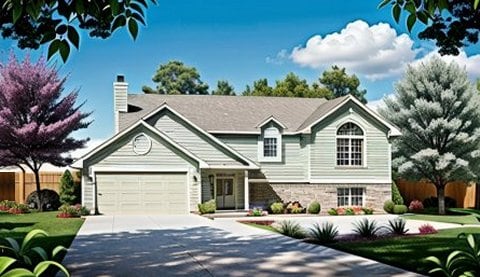

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1146 (52' × 46') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1146
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1146 sq. ft
Roof
Truss 5/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=156' (insulated)
Ceilings
Vaulted - Living, Dining & Kitchen
Basement
Approx. 1028 sq. ft ull View-out
Opt'l Finish
Rec room 2 Bedrooms w/ Walk-in closets 3/4 Bath
Masonry
Approx. 288 sq. ft Front only (Includes front offsets)
Kitchen
Approx. 10' x 9' Base cabs L=15' Upper cabs L=16' 18" Pantry
Misc
Csmt windows W/B Fireplace
