3-Bedroom Ranch House Plan — 1,159 Sq Ft (Plan 1159)

by American Design Gallery

Ranch style small norrow lot house plan

Plan #1159
Plan # 1159 - Ranch | Small render view

Specifications

  • ●1159 sq ft
  • ●42' wide x 56' deep
  • ●3 bedrooms
  • ●2 baths

Features

  • ●Vaulted Ceilings
  • ●Plant Shelves
  • ●Large Closet
  • ●Bay Window
  • ●Covered Porch
  • ●Fireplace

Floor Plan

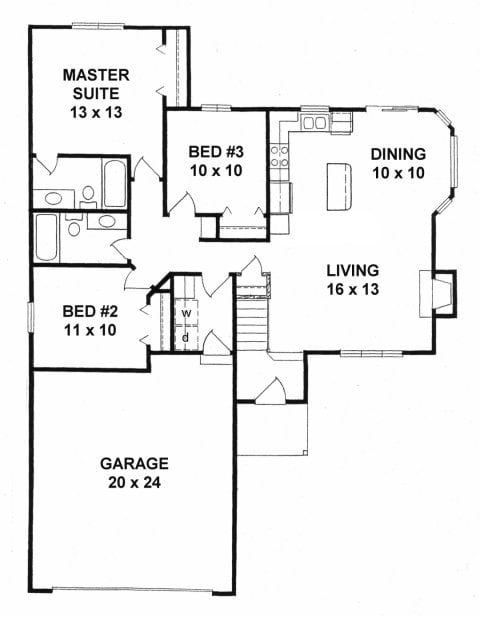

First Floor plan for #1159

Copyright 2026 ADG, Inc.

Elevation

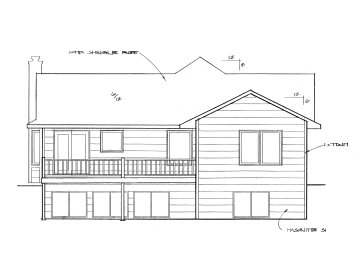

Elevation 1 for Plan #1159

Loading...

Unlimited Licensing

  • ✓Print as many copies as you need
  • ✓Have changes made by your local draftsman
  • ✓Share with your builder, engineer, and permitting office
  • ✓One-time purchase, no recurring fees

Details

Heated Area

1159 sq. ft

Roof

Truss 6/12 main pitch 8/12 front pitch

Floor

Truss or TJI

Walls

8' plates L=162' (insulated)

Ceilings

Vaulted - Living, Dining & Kitchen

Basement

View-out (rear)

Opt'l Finish

Rec room 2 Bedrooms w/ Walk-in closets Full Bath

Masonry

Approx. 108 sq. ft Front only (Includes front offsets)

Kitchen

Approx. 8' x 10' Base cabs L=16' Upper cabs L=13'

Misc

Csmt windows W/B Fireplace
