3-Bedroom Ranch House Plan — 1,162 Sq Ft (Plan 1162)
by American Design Gallery
Ranch style small house plan w/ Master Suite
1,162Sq Ft
3Bedrooms
2Baths
1Stories
50'Width
42'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Window Seat
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

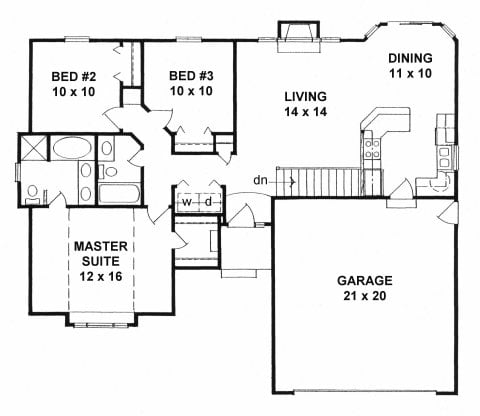

Floor Plan
Copyright 2026 ADG, Inc.

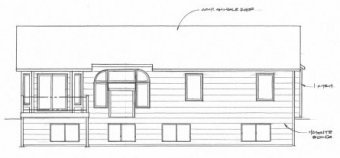

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1162 (50' × 42') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1162
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1162 sq. ft
Roof
Truss 6/12 pitch
Floor
Truss or TJI
Walls
8' plates L=164' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen, & MBR
Basement
Approx. 1054 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 246 sq. ft Front only (Includes front offsets)
Kitchen
Approx. 10' x 10' Base cabs L=16' Upper cabs L=15'
Misc
Csmt windows Gas-log Fireplace
