3-Bedroom Ranch House Plan — 1,235 Sq Ft (Plan 1235)
by American Design Gallery
3 bedroom Ranch w/ Bay window Dining
1,235Sq Ft
3Bedrooms
2Baths
1Stories
46'Width
48'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Large Closet
- ●Bay Window
- ●Covered Porch
- ●Fireplace

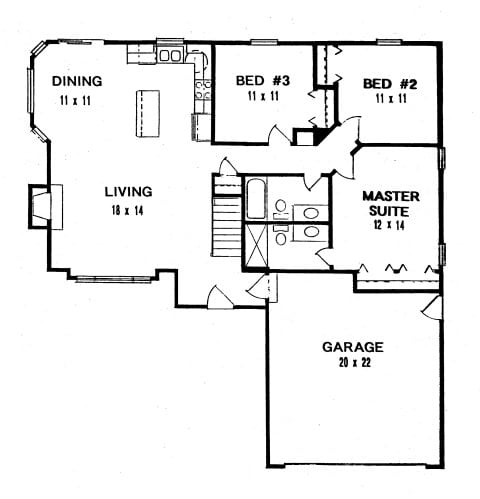

Floor Plan
Copyright 2026 ADG, Inc.

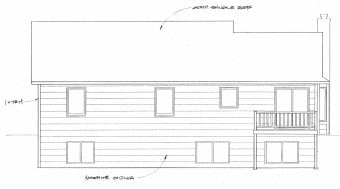

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1235 (46' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1235
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1235 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss
Walls
8' plates L=162' (insulated)
Ceilings
Vaulted - Living, Dining & Kitchen
Basement
Approx. 980 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms 3/4 Bath
Masonry
Approx. 192 sq. ft Front only (includes front offsets)
Kitchen
Approx. 10' x 11' Base cabs L=18' Upper cabs L=15'
Misc
Csmt windows W/B Fireplace
