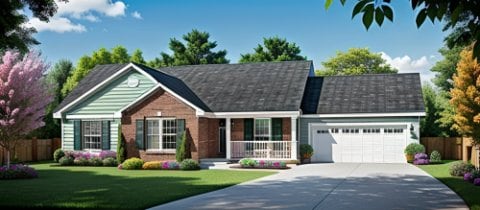

3-Bedroom Ranch House Plan — 1,240 Sq Ft (Plan 1240)
by American Design Gallery
3 bedroom Ranch w/ walk-in closet
1,240Sq Ft
3Bedrooms
2Baths
1Stories
60'Width
36'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

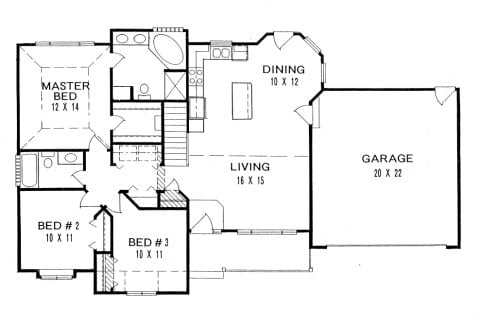

Floor Plan
Copyright 2026 ADG, Inc.

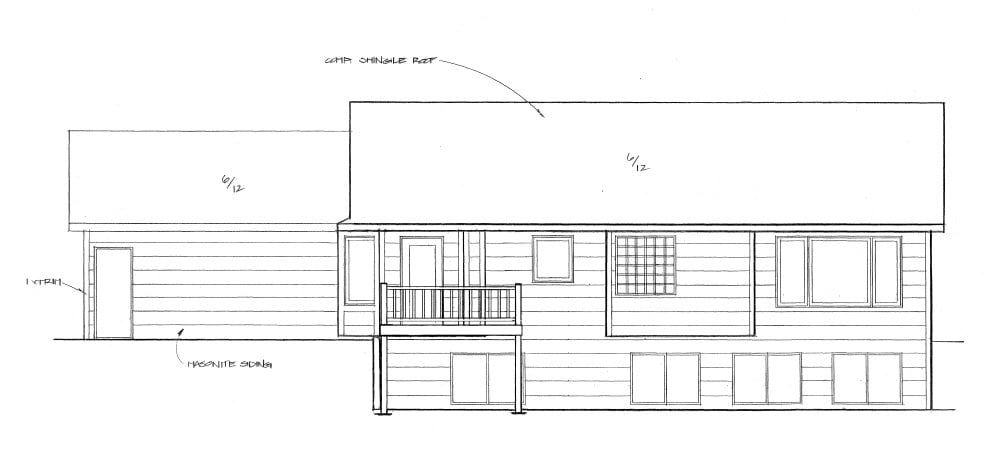

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1240 (60' × 36') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1240
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1240 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss
Walls
8' plates L=156' (insulated)
Ceilings
Vaulted - Living, Dining & Kitchen Coffer - MBR
Basement
Approx. 1120 sq. ft View-out (rear)
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 214 sq. ft Front only (includes front offsets)
Kitchen
Approx. 10' x 11' Base cabs L=16' Upper cabs L=13'
Misc
Csmt windows
