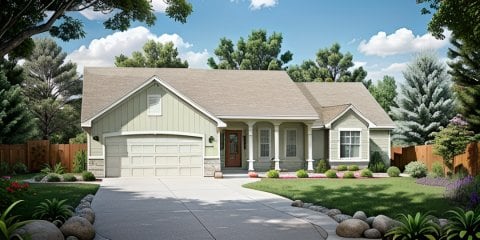

3-Bedroom Ranch House Plan — 1,245 Sq Ft (Plan 1245)
by American Design Gallery
3 split bedroom Ranch w/ walk-in closet
1,245Sq Ft
3Bedrooms
2Baths
1Stories
50'Width
46'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

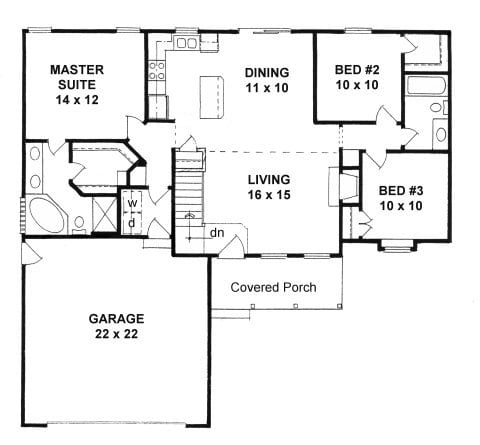

Floor Plan
Copyright 2026 ADG, Inc.

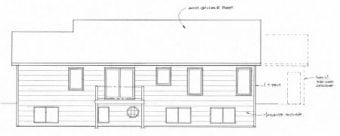

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1245 (50' × 46') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1245
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1245 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss
Walls
8' plates (9' porch) L=152' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen & MBR
Basement
Approx. 1120 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 160 sq. ft Front only (includes front offset)
Kitchen
Approx. 8' x 10' Base cabs L=16' Upper cabs L=13'
Misc
Csmt windows Gas Log Fireplace
