Plan #1264

Plan # 1264 - Ranch | Large render view

Specifications

  • 1264 sq ft
  • 52′ wide x 40′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Window Seat
  • Bay Window
  • Covered Porch
  • Walk-In Closet
  • Fireplace
  • 9' Ceilings

Floor Plan

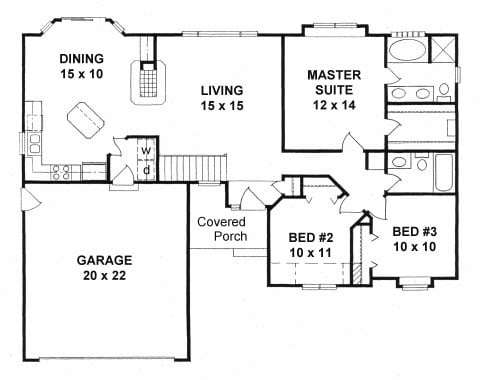

Plan # 1264 - Ranch | First floor plan
Copyright 2000 ADG, Inc.

Elevation

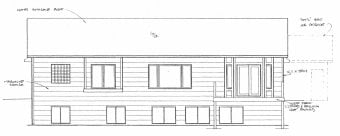

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1264 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss

Walls

9' plates
L=170' (insulated)

Ceilings

9' - Living, Dining,
Kitchen & MBR

Basement

Approx. 1152 sq. ft
View-out

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 388 sq. ft.
Front only (includes
front offsets)

Kitchen

Approx. 10' x 10'
Base cabs L=17'
Upper cabs L=14'

Misc

Csmt windows
Gas-log Fireplace
