Plan #1268

Plan # 1268 - Ranch | Large render view

Specifications

  • 1268 sq ft
  • 56′ wide x 42′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Plant Shelves
  • Bay Window
  • Covered Porch
  • Walk-In Closet
  • Fireplace
  • 9' Ceilings

Floor Plan

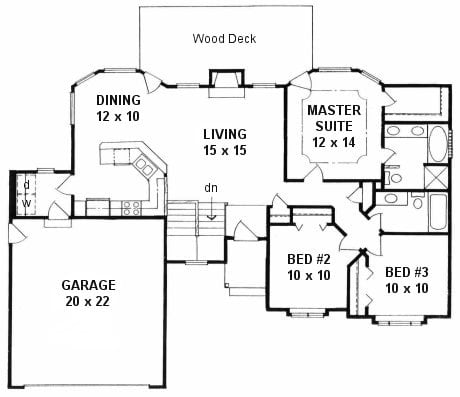

Plan # 1268 - Ranch | First floor plan
Copyright 2002 ADG, Inc.

Elevation

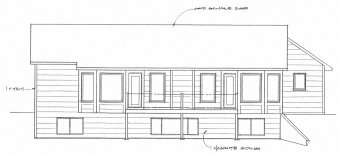

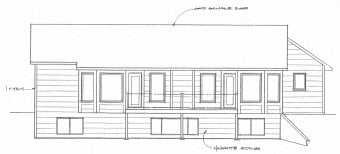

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1268 sq. ft

Roof

Truss
6/12 main pitch
(7.5 & 8/12 front)

Floor

Truss or TJI

Walls

8' & 9' plates
L=202' (insulated)

Ceilings

9' - Living, Dining, Kitchen,
MBR & MBR Bath
8'-Bed #2 &Bed #3

Basement

Approx. 1134 sq. ft
View-out

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 264 sq. ft
Front only (includes
front offsets)

Kitchen

Approx. 12' x 9'
Base cabs L=16'
Upper cabs L=14'
18" Pantry

Misc

Csmt windows
Gas-log Fireplace
