Plan #1271

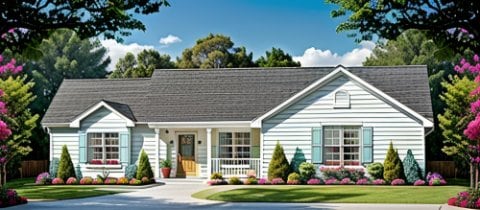

Plan # 1271 - Ranch | Large render view

Specifications

  • 1271 sq ft
  • 50′ wide x 52′ deep
  • 2 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Window Seat
  • Covered Porch
  • Walk-In Closet
  • Fireplace

Floor Plan

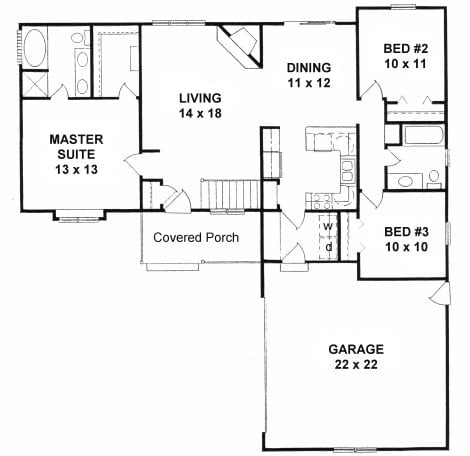

Plan # 1271 - Ranch | First floor plan
Copyright 1997 ADG, Inc.

Elevation

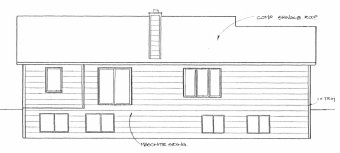

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1271 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' plates
L=160' (insulated)

Ceilings

Vaulted - Living,
Dining, Kitchen & MBR

Basement

Approx. 1170 sq. ft
View-out

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 216 sq. ft
Front only (includes
front offset)

Kitchen

Approx. 11' x 10'
Base cabs L=16'
Upper cabs L=16'
36" Pantry

Misc

Csmt windows
W/B Fireplace
