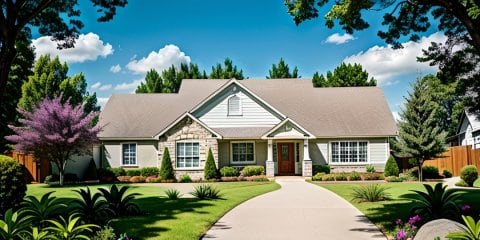

2-Bedroom Ranch House Plan — 1,309 Sq Ft (Plan 1309)
by American Design Gallery
3 bedroom Ranch w/ walk-in pantry and side-load Garage
1,309Sq Ft
2Bedrooms
2Baths
1Stories
56'Width
49'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Window Seat
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace

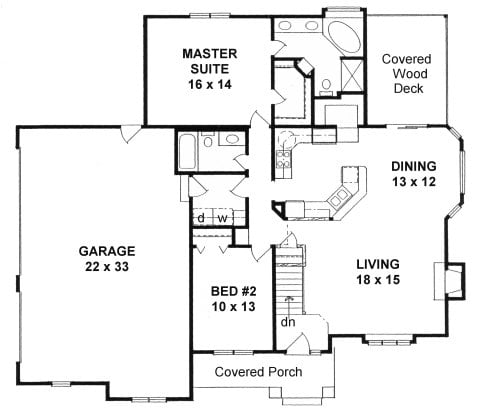

Floor Plan
Copyright 2026 ADG, Inc.

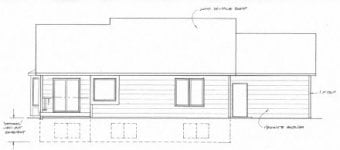

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1309 (56' × 49') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1309
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1309 sq. ft
Roof
Truss 5/12 main pitch 8.3/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=166' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen & MBR
Basement
Approx. 1203 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 325 sq. ft (175 stone, 150 brick wainscot) Front only (includes front offsets & left side of garage)
Kitchen
Approx. 11' x 12' Base cabs L=17' Upper cabs L=15'
Misc
Csmt windows Gas-log Fireplace
