3-Bedroom Ranch House Plan — 1,370 Sq Ft (Plan 1370)
by American Design Gallery
3 bedroom Cottage w/ Side Garage
1,370Sq Ft
3Bedrooms
2Baths
1Stories
50'Width
49'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry

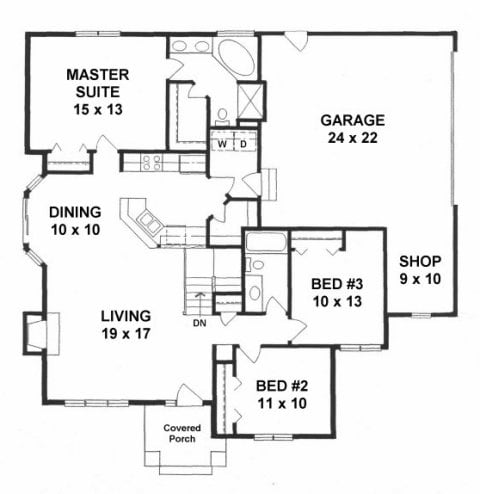

Floor Plan
Copyright 2026 ADG, Inc.

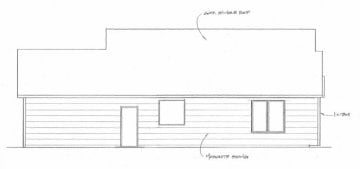

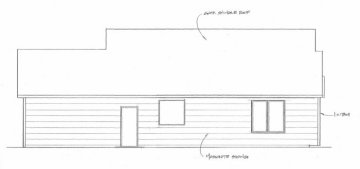

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1370 (50' × 49') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1370
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1370 sq. ft
Roof
Truss 6/12 main pitch 7.5/12 front pitch
Floor
Truss or TJI
Walls
8' plates (2x6) L=178' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen & MBR
Basement
Approx. 1240 sq. ft Full w/ 9' Ceilings
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 310 sq. ft Front only (includes front offsets)No masonry ledge
Kitchen
Approx. 10' x 10' Base cabs L=15' Upper cabs L=14'
Misc
Csmt windows Gas-log Fireplace Walk-in Pantry
