Plan #1401

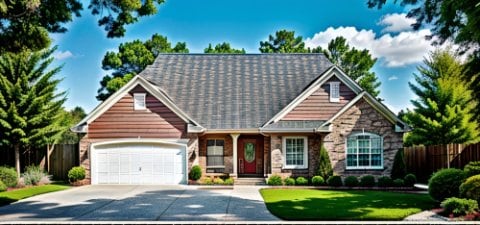

Plan # 1401 - Ranch | Large render view

Specifications

  • 1401 sq ft
  • 54′ wide x 48′ deep
  • 2 bedrooms
  • 2 baths

Features

  • Bay Window
  • Covered Porch
  • Covered Deck
  • Walk-In Closet
  • Fireplace
  • 9' Ceilings

Floor Plan

Plan # 1401 - Ranch | First floor plan
Copyright 2000 ADG, Inc.

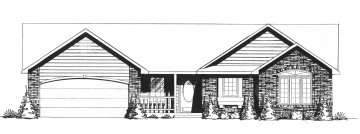

Elevation


Alternate Elevation


Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1401 sq. ft

Roof

Truss
10/12 pitch

Floor

Truss or TJI

Walls

8' & 9' plates
L=190' (insulated)

Ceilings

9' - Living, Dining, Kitchen,
Hearth, Bed #2, MBR & Bath

Basement

Approx. 1276 sq. ft
View-out (rear)

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 312 sq. ft
Front only (includes
front offsets)

Kitchen

Approx. 11' x 10'
Base cabs L=18'
Upper cabs L=16'

Misc

Csmt windows
Gas-log Fireplace
