3-Bedroom Ranch House Plan — 1,406 Sq Ft (Plan 1406)
by American Design Gallery
3 bedroom Ranch w/ vaulted ceilings and plant shelves
1,406Sq Ft
3Bedrooms
2Baths
1Stories
54'Width
48'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings

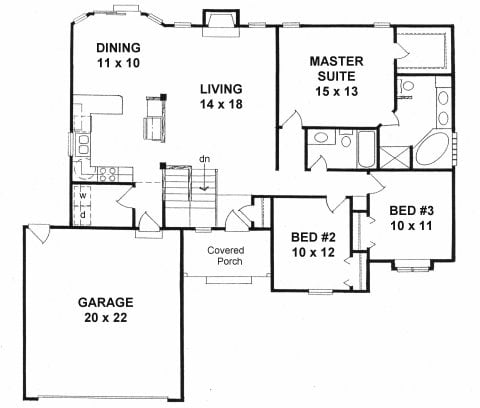

Floor Plan
Copyright 2026 ADG, Inc.

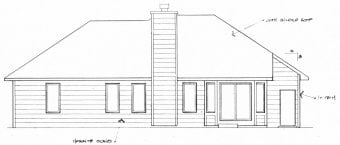

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1406 (54' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1406
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1406 sq. ft
Roof
Truss 8/12 pitch
Floor
Truss or TJI
Walls
8' plates L=166' (insulated)
Ceilings
Vaulted - Living & Dining 10' - Kitchen Coffer - MBR
Basement
Approx. 1296 sq. ft Full Basement
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 432 sq. ft Front only (includes front offsets)
Kitchen
Approx. 11' x 11' Base cabs L=16' Upper cabs L=14' 24" Pantry
Misc
Csmt windows W/B Fireplace
