3-Bedroom Ranch House Plan — 1,417 Sq Ft (Plan 1417)
by American Design Gallery|3 bedroom Ranch w/ Bay windows and tandem 3-Car Garage
Designed as a comfortable and efficient 1,417 square foot Ranch-style home, Plan 1417 offers simplicity and modern amenities. This single-story layout features three bedrooms and two bathrooms, making it ideal for families or downsizers. The open living area, complete with vaulted ceilings and a cozy fireplace, seamlessly connects the kitchen and dining spaces, enhancing the home's warmth and inviting atmosphere. A covered porch adds charm and functionality, perfect for enjoying outdoor moments. The master suite, equipped with a walk-in closet, ensures privacy and convenience.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry
Key Highlights
- ●1,417 sq ft Ranch-style layout
- ●3 bedrooms, 2 bathrooms
- ●Open living with vaulted ceilings
- ●Covered porch for outdoor enjoyment
- ●Master suite with walk-in closet
- ●Fireplace and walk-in pantry

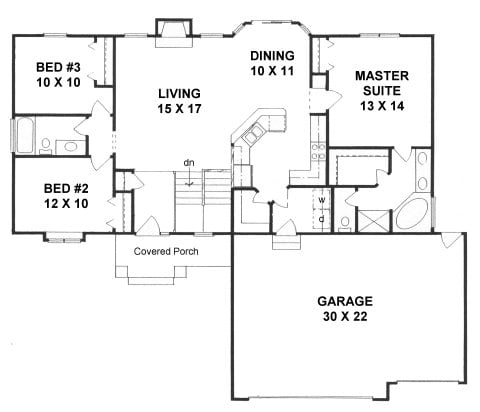

Floor Plan
Copyright 2026 ADG, Inc.

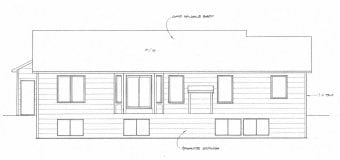

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1417 (58' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1417
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1417 sq. ft
Roof
Truss 6/12 pitch
Floor
Truss or TJI
Walls
8' plates L=164' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen & MBR
Basement
Approx. 1312 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 218 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=17' Upper cabs L=17'
Misc
Csmt windows Gas-log Fireplace
Similar Plans
- Plan #12182 split-bedroom Ranch — 1218 sq ft
- Plan #12203 bedroom Ranch — 1220 sq ft
- Plan #12213 bedroom Ranch w/tandem 3-car Garage — 1248 sq ft
About Plan #1417
Exterior and Curb Appeal

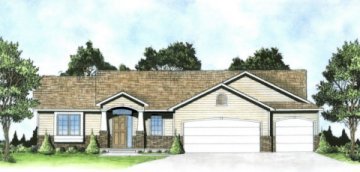

The Ranch-style design of Plan 1417 presents a welcoming and timeless facade, highlighted by a covered porch that adds both functionality and charm. The exterior showcases a combination of siding and masonry, providing durability and visual interest, particularly with the distinctive front offsets. The 58-foot width and 50-foot depth optimize lot space while offering a spacious driveway and entry path that enhance curb appeal.
Main Level Layout
This single-story home efficiently utilizes its 1,417 square feet to create a harmonious living environment. The main living area features a seamless blend of the living room, dining area, and kitchen, all under vaulted ceilings that amplify the sense of space. The living room, measuring 15 by 17 feet, becomes the home's heart, centered around a gas-log fireplace that promises warmth and comfort.
Bedroom and Bathroom Arrangement
The three-bedroom configuration provides flexibility and functionality. The master suite, designed for privacy, includes a 13 by 14-foot bedroom, a full bath, and a walk-in closet, ensuring personal space and convenience. The additional two bedrooms, measuring 10 by 10 feet and 12 by 10 feet, share a well-appointed second bathroom, making them ideal for family or guests.
Notable Features
Plan 1417 is equipped with thoughtful features that enhance everyday living. The kitchen offers a generous 12 by 10-foot space, complete with ample cabinetry and a walk-in pantry, catering to culinary needs. Plant shelves and a bay window add architectural interest and natural light to the interior spaces. The basement provides an optional finish, including a recreation room, two bedrooms, and a full bath, expanding the home's potential for growth and customization.
