3-Bedroom Ranch House Plan — 1,424 Sq Ft (Plan 1424)
by American Design Gallery
3 bedroom narrow lot Ranch w/ 3-Car Garage
1,424Sq Ft
3Bedrooms
2Baths
1Stories
52'Width
50'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Window Seat
- ●Bay Window
- ●Fireplace
- ●9' Ceilings

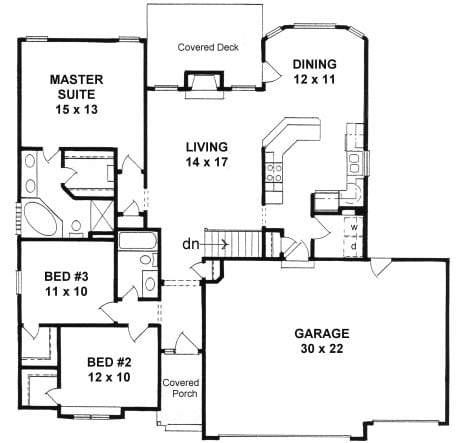

Floor Plan
Copyright 2026 ADG, Inc.

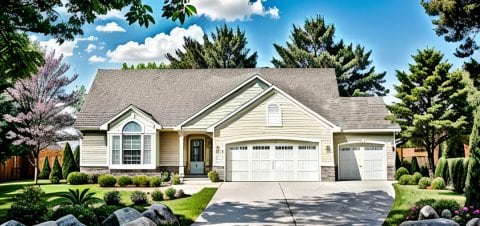

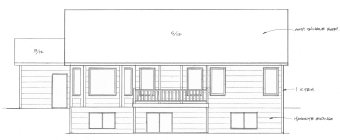

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1424 (52' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1424
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1424 sq. ft
Roof
Truss 5/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=186' (insulated)
Ceilings
Vaulted - Dining & MBR 9' - Living Room & Kitchen
Basement
Approx. 1290 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 120 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=19' Upper cabs L=15'
Misc
Csmt windows Gas-log Fireplace 18" Pantry NOTE: Deck is partially covered
