3-Bedroom Ranch House Plan — 1,524 Sq Ft (Plan 1524)
by American Design Gallery
3 Bedroom Ranch, Walk-in Pantry, 3 Car Garage, Open Living
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings
- ●Walk-In Pantry

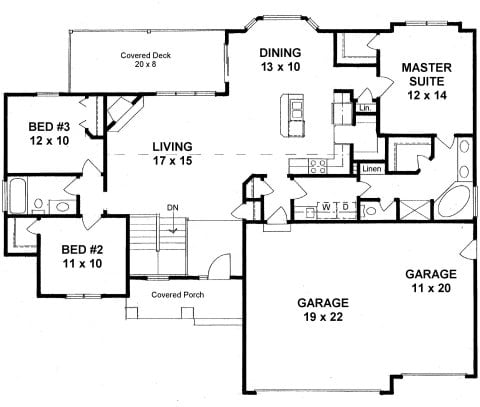

Floor Plan
Copyright 2026 ADG, Inc.

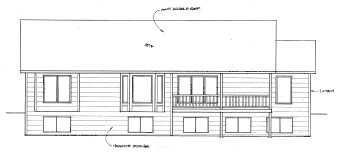

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1524 (60' × 49') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1524
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1524
Roof
6/12 main pitch 7.4/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=193
Ceilings
Vaulted Living, Dining, Kitchen, Foyer & Master suite. 10' ceiling - Bedroom #2
Basement
1402
Opt'l Finish
Rec room 3 Bedrooms Full Bath
Masonry
Approx. 318 Sq ft Front only (includes front offsets)
Kitchen
Approx. 9' x 11' Base cabs L=13' Upper cabs L=14'
Misc
Csmt windows Gas Log Fireplace
Similar Plans
- Plan #13243 bedroom Ranch w/ Bay window — 1324 sq ft
- Plan #13293 bed Ranch w/ walk in pantry, Island bar kitchen and 3 car garage — 1329 sq ft
- Plan #1333Plan #1333 - 3 bedroom Ranch w/ walk-in pantry — 1333 sq ft
About Plan #1524
Split bedroom ranch featuring a wide open and vaulted living area, his & her walk-in closets, hidden walk-in Pantry, Utility room short-cut, Covered deck, Covered porch and an oversized Garage. The Basement is designed to add a large Recreation room, 3 more 13' x 12' bedrooms and a full bath.
