3-Bedroom Ranch House Plan — 1,539 Sq Ft (Plan 1539)
by American Design Gallery
3 bedroom Ranch w/ Mud room & Walk-in Pantry
1,539Sq Ft
3Bedrooms
2.5Baths
1Stories
60'Width
49'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry
Floor Plan
Copyright 2026 ADG, Inc.

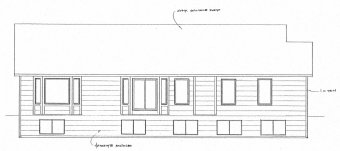

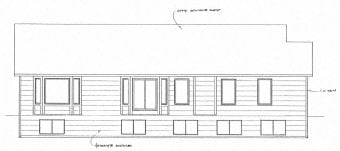

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1539 (60' × 49') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1539
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1539 sq. ft
Roof
Truss 8/12 pitch
Floor
Truss or TJI
Walls
8' plates L=182' (insulated)
Ceilings
Vaulted- Living, Dining & Kitchen 10'- Bed #2
Basement
Approx. 1442 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
350 sq ft (includes front offsets)
Kitchen
Approx. 13' x 10' Base cabs L=17' Upper cabs L=13'
Misc
Csmt windows Gas log Fireplace
