3-Bedroom Ranch House Plan — 1,542 Sq Ft (Plan 1542)
by American Design Gallery

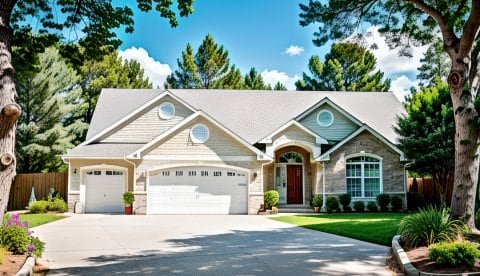

3 bedroom Ranch w/ Walk-in pantry and 3-Car Garage
1,542Sq Ft
3Bedrooms
2Baths
1Stories
54'Width
50'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

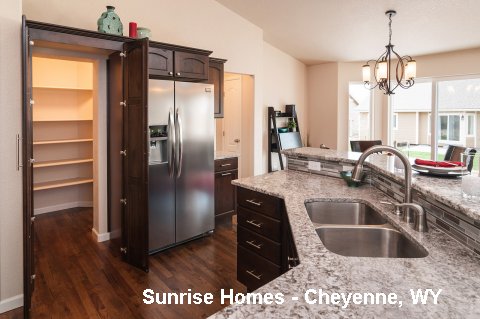

- ●Walk-In Pantry

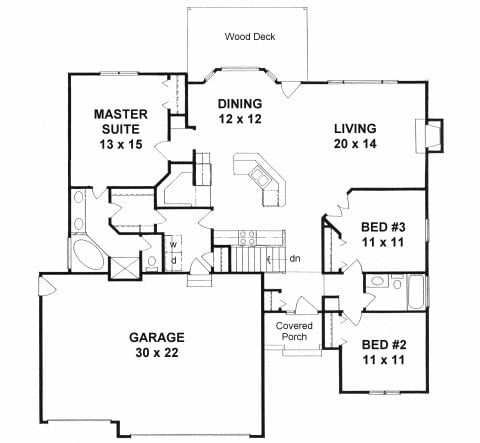

Floor Plan
Copyright 2026 ADG, Inc.

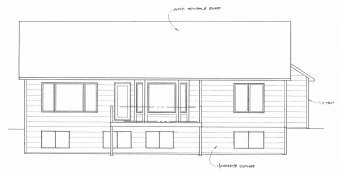

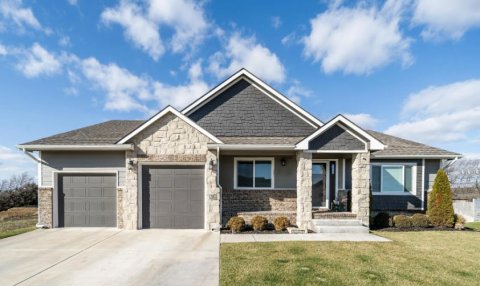

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1542 (54' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1542
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1542 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates (10' TDP porch area only) L=192' (insulated)
Ceilings

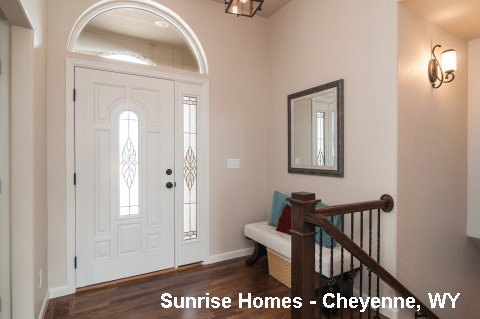

Vaulted - Living, Dining, Kitchen, Bed #3 & MBR 10' - Foyer

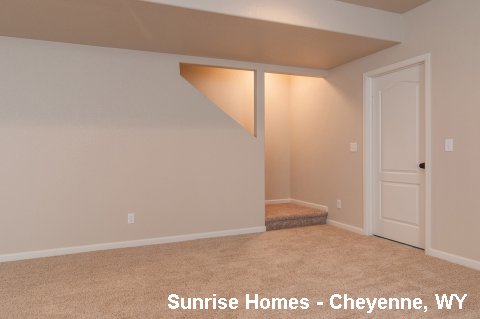

Basement
Approx. 1412 sq. ft View-out
Opt'l Finish
Rec room 3 Bedrooms Full Bath
Masonry
Approx. 160 sq. ft Front only (includes front offsets)

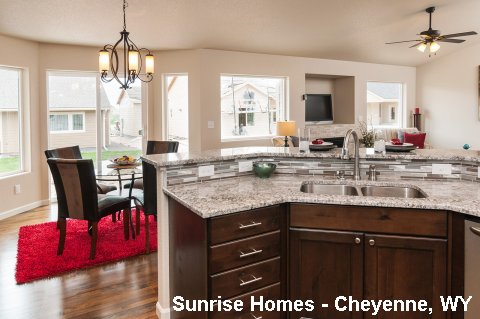

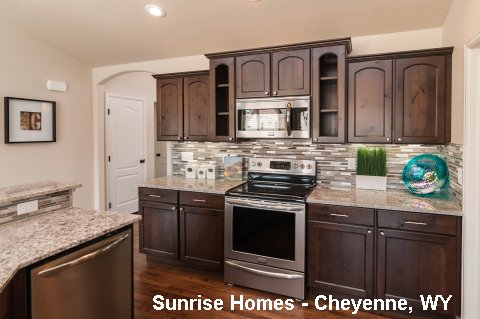

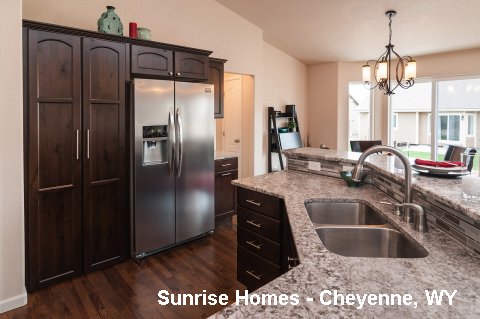

Kitchen
Approx. 12' x 12' Base cabs L=17' Upper cabs L=13'
Misc
Csmt windows Gas-log Fireplace
