3-Bedroom Ranch House Plan — 1,645 Sq Ft (Plan 1645)
by American Design Gallery
3 bedroom Ranch w/ formal Dining and a tandem 3-Car Garage
1,645Sq Ft
3Bedrooms
2Baths
1Stories
56'Width
52'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings

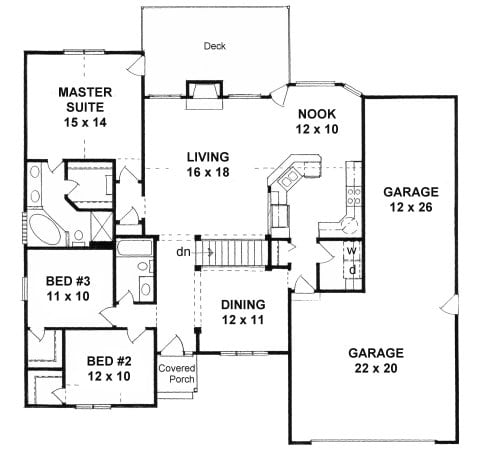

Floor Plan
Copyright 2026 ADG, Inc.

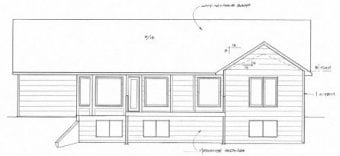

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1645 (56' × 52') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1645
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1645 sq. ft
Roof
Truss 6/12 main pitch 9+ /12 front pitch
Floor
Truss or TJI
Walls
8' & 10' plates L=210' (insulated)
Ceilings
Vaulted - Living, Kitchen, Nook & MBR 10' - Dining & Foyer
Basement
Approx. 1495 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 280 sq. ft Brick - 120 Stone - 212 Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=17' Upper cabs L=16' 18" Pantry
Misc
Csmt windows Gas-log Fireplace
