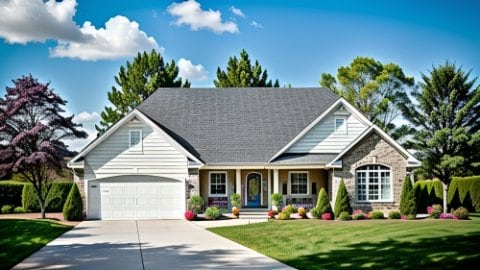

3-Bedroom Ranch House Plan — 1,646 Sq Ft (Plan 1646)
by American Design Gallery
3 bedroom Ranch w/ Hearthroom and Island Kitchen breakfast Bar
1,646Sq Ft
3Bedrooms
2Baths
1Stories
54'Width
52'Depth
Features
- ●Vaulted Ceilings
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●10' Ceilings

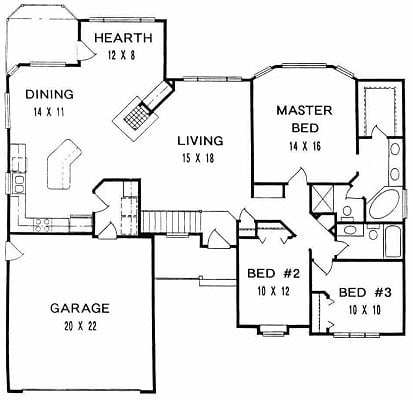

Floor Plan
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1646 (54' × 52') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1646
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1646 sq. ft
Roof
Truss 10/12 pitch
Floor
Truss or TJI
Walls
8', 9' & 10' plates L=200' (insulated)
Ceilings
10' - Living Slope to 10' - Kitchen, Hearth, & Dining 9' tray - MBR
Basement
Approx. 1514 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 280 sq. ft Brick - 192 Stone - 88 Front only (includes front offsets)
Kitchen
Approx. 11' x 13' Base cabs L=22' Upper cabs L=18'
Misc
Csmt windows Gas-log Fireplace
