3-Bedroom Ranch House Plan — 1,672 Sq Ft (Plan 1672)
by American Design Gallery
3 bedroom Ranch w/ angled walls and 3-Car Garage
1,672Sq Ft
3Bedrooms
2Baths
1Stories
66'Width
58'Depth
Features
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings

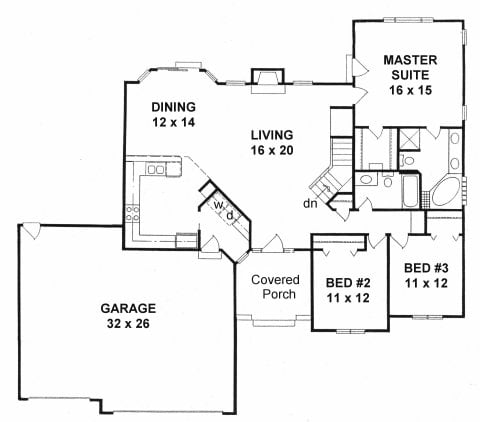

Floor Plan
Copyright 2026 ADG, Inc.

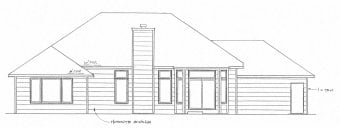

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1672 (66' × 58') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1672
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1672 sq. ft
Roof
Truss 8/12 main pitch
Floor
Truss
Walls
8' & 10' plates L=202' (insulated)
Ceilings
10' - Living, Dining & Foyer Coffer - MBR Vault to 10' - Bed #2
Opt'l Finish
Approx. 1540 sq. ft Full Basement
Masonry
Approx. 520 sq. ft Front only (includes front offset)
Kitchen
Approx. 10' x 13' Base cabs L=20' Upper cabs L=21' 24" Pantry
Misc
Csmt windows W/B Fireplace
