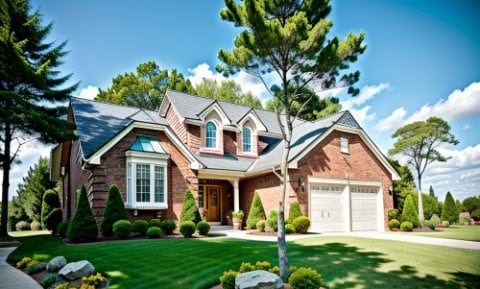

3-Bedroom 1 1/2 Story House Plan — 1,840 Sq Ft (Plan 1840)
by American Design Gallery
1-1/2 Story 3 bedroom house w/ Jack and Jill bath
Features
- ●Vaulted Ceilings
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
Floor Plans

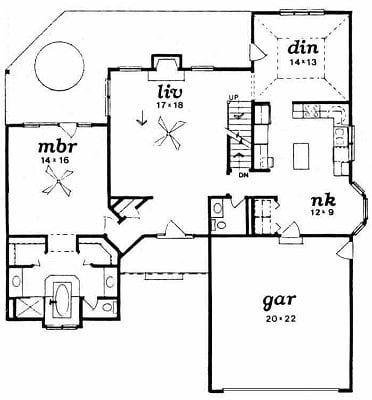

First Floor
Second Floor
Copyright 2026 ADG, Inc.

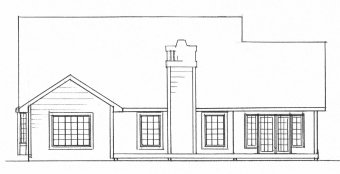

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1840 (50' × 54') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1840
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1840 sq. ft 1364 main 476 up
Roof
Truss 8/12 main pitch 12/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=192' main fl L=62' upper fl (insulated)
Ceilings
Vaulted- Living, MBR & Bath Truncated - Dining
Basement
Approx. 1711 sq. ft Full Basement
Opt'l Finish
Rec room 1 Bedroom 3/4 Bath
Masonry
Approx. 520 sq. ft Front only
Kitchen
Approx. 13' x 10' Base cabs L=18' Upper cabs L=16' 36" Pantry 42" Desk
Misc
Csmt windows W/B Fireplace NOTE: *Attic space over Kitchen can be used as 4th Bed 'or' Loft w/ open rail overlooking Living Room. (*adds 154 sq. ft)
