5-Bedroom Ranch House Plan — 2,072 Sq Ft (Plan 2072)
by American Design Gallery|House plan for assisted living facility
Welcome to this inviting 2,072 sq ft ranch-style home, perfectly crafted for modern family living. With five spacious bedrooms and 2.5 bathrooms, this single-story layout offers both comfort and practicality. The open-concept design is highlighted by vaulted ceilings in the living and dining areas, creating an expansive and airy atmosphere. A cozy gas-log fireplace serves as a charming focal point in the living room, perfect for cozy gatherings. The kitchen, complete with ample cabinetry and a convenient 18" pantry, makes meal preparation a delight. Step outside to a covered front porch, ideal for relaxing and enjoying the outdoors. This home, built on a slab on grade foundation, combines energy efficiency with timeless style, making it a perfect choice for those seeking a blend of tradition and modernity. Whether you're hosting guests or enjoying quiet family time, this house plan offers a versatile and inviting space that adapts to your lifestyle needs. Discover the perfect blend of functionality and elegance in this thoughtfully designed home.
Read full description →Features
- ●Vaulted Ceilings
- ●Covered Porch
- ●Fireplace
- ●9' Ceilings
Key Highlights
- ●2,072 sq ft ranch-style home
- ●5 bedrooms, 2.5 bathrooms
- ●Vaulted ceilings in living and dining areas
- ●Covered front porch for outdoor relaxation
- ●Gas-log fireplace in the living room
- ●Slab on grade foundation for energy efficiency

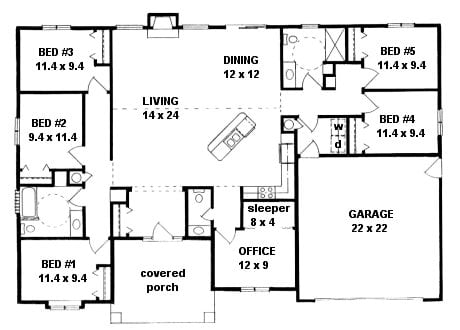

Floor Plan
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #2072 (64' × 47') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #2072
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
2072 sq. ft
Roof
Truss 5/12 main pitch 7.5/12 front pitch
Floor
Slab on grade
Walls
2 x 6 ext. walls 9' plates L=228' (insulated)
Ceilings
9' - Thru-out plus Vaulted Living, Dining & Kitchen
Basement
N/A (Slab on grade)
Opt'l Finish
N/A
Masonry
Approx. 220 sq. ft Front only (Includes front offsets)
Kitchen
Approx. 12' x 12' Base cabs L=17' Upper cabs L=14' 18" Pantry
Misc
Csmt windows Gas-log Fireplace 2 water heaters
Similar Plans
- Plan #18742 bedroom Ranch w/ walk-in shower and 4-Car Garage — 1874 sq ft
- Plan #18862 split bedrooms Ranch w/ Hearth room and 3-Car Garage — 1886 sq ft
- Plan #19503 bedroom Ranch w/ large utility for 2 dryers — 1950 sq ft
About Plan #2072

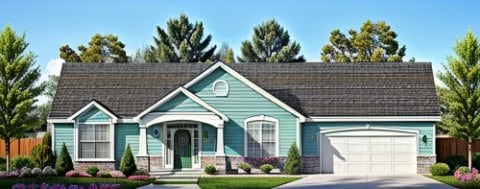

Exterior and Curb Appeal
The exterior of this ranch-style home exudes classic charm with its well-crafted design. The front features approximately 220 sq ft of masonry, offering a touch of elegance that enhances its curb appeal. The inviting covered porch is perfect for casual conversations or enjoying a peaceful cup of coffee. The roof, designed with a 5/12 main pitch and a 7.5/12 front pitch, not only adds to the aesthetic appeal but also ensures durability and weather resistance.
Main Level Layout
Upon entering, you'll be welcomed into a spacious living area that sets the tone for the rest of the home. The vaulted ceilings in the living and dining areas create an open and airy environment, making it ideal for both entertaining guests and everyday family life. The seamless flow between the living room, dining area, and kitchen encourages interaction and connectivity. The central gas-log fireplace provides warmth and a cozy focal point, perfect for family gatherings or quiet evenings.
Bedroom and Bathroom Arrangement
This thoughtfully designed home includes five generously sized bedrooms, providing ample space for family members or guests. The master suite offers a private sanctuary, complete with amenities designed for relaxation and comfort. The additional bedrooms are strategically positioned to share two full bathrooms, ensuring convenience and privacy for all occupants. Each bedroom is crafted to offer comfort and tranquility, making it easy to accommodate a growing family or visiting friends.
Notable Features and Amenities
The home is filled with features that enhance both functionality and style. The 9' ceilings throughout the home contribute to the spacious feeling, while the well-equipped kitchen, approximately 12' x 12', offers extensive cabinetry and an 18" pantry for all your storage needs. Built on a slab on grade foundation, the home promises energy efficiency and stability. The inclusion of insulated 2 x 6 exterior walls further supports energy conservation, making this home as practical as it is beautiful. From the spacious bedrooms to the inviting living areas, every aspect of this home is designed with your lifestyle in mind.
