2-Bedroom Ranch House Plan — 2,297 Sq Ft (Plan 2297)

by American Design Gallery

2 bedroom Ranch w/ Family room and 3-Car side-load Garage

Plan #2297

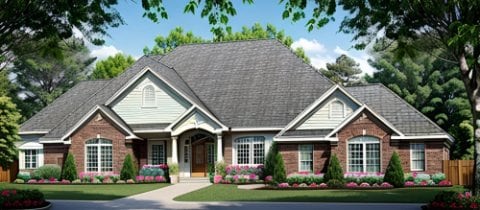

Plan # 2297 - Ranch | Small render view

Specifications

  • ●2297 sq ft
  • ●83' wide x 66' deep
  • ●2 bedrooms
  • ●2.5 baths

Features

  • ●Vaulted Ceilings
  • ●Bay Window
  • ●Covered Porch
  • ●Walk-In Closet
  • ●Fireplace
  • ●10' Ceilings
  • ●12' ceilings

Floor Plan

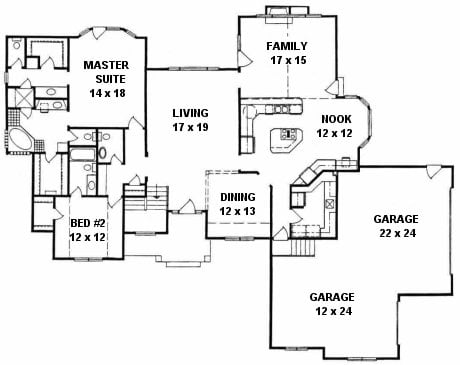

First Floor plan for #2297

Copyright 2026 ADG, Inc.

Loading...

Unlimited Licensing

  • ✓Print as many copies as you need
  • ✓Have changes made by your local draftsman
  • ✓Share with your builder, engineer, and permitting office
  • ✓One-time purchase, no recurring fees

Details

Heated Area

2297 sq. ft

Roof

Truss 10/12 pitch

Floor

Truss or TJI

Walls

8' & 10' plates L=246' (insulated)

Ceilings

12' - Living & Dining 10'- Kitchen, Nook, MBR & MBR Baths Vaulted - Hearth room, Bed #2, MBR & MBR Baths

Basement

Approx. 2134 sq. ft View-out

Opt'l Finish

Rec room 2 Bedrooms Full Bath

Masonry

Approx. 1540 sq. ft Front only (Includes front offsets & 2 sides)

Kitchen

Approx. 18' x 16' Base cabs L=29' Upper cabs L=14' 48" Desk

Misc

Csmt windows Gas-log Fireplace
