3-Bedroom Duplex House Plan — 2,848 Sq Ft (Plan 2848)
by American Design Gallery
3 bed 2-story duplex
Specifications
- ●2848 sq ft
- ●52' wide x 37' deep
- ●3 bedrooms
- ●2.5 baths
Features
- ●Vaulted Ceilings
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
Floor Plans
First Floor
Second Floor
Copyright 2026 ADG, Inc.

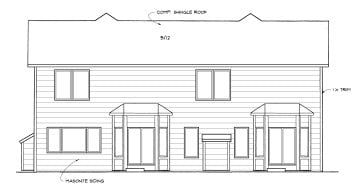

Elevation
Loading...
Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
2848 each unit...1424 main floor... 560 upper floor... 864
Roof
5/12 pitch main 8/12 pitch front
Floor
2 x 10
Walls
9' plates main floor 8' plates upper floor
Ceilings
9' main floor Vaulted Master Suite
Basement
approx. 550 sq ft each unit
Opt'l Finish
Bonus room "rough-in" 3/4 bath
Masonry
Brick wainscot front only
Kitchen
14 x 10
Misc
4' x 4' corner shower in MBR bath NOTE: Overall dimensions include 2' cantilevered fireplaces and bay windows
