3-Bedroom 2 Story House Plan — 3,097 Sq Ft (Plan 3097)
by American Design Gallery
2-Story Caribbean/Victorian w/ 3-Master Suites - Bed and Breakfast
Specifications
- ●3097 sq ft
- ●76' wide x 56' deep
- ●3 bedrooms
- ●3.5 baths
Features
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings
Floor Plans

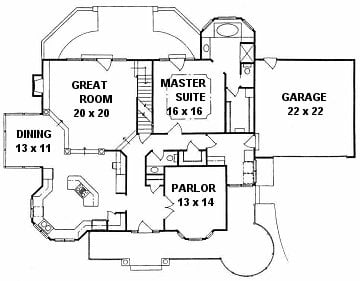

First Floor
Second Floor
Copyright 2026 ADG, Inc.
Loading...
Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
3097 sq. ft 1927 main fl 1170 upper fl
Roof
Truss 8/12 main pitch 12/12 front, Sides & Garage
Floor
Truss or TJI
Walls
10' plates main 8' plates up L=212' main fl L=172' upper fl (insulated)
Ceilings
10' - Great Room, Kitchen, Dining, MBR & Parlor 20'- Great Room
Basement
Approx. 1787 sq. ft Full Basement
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 620 sq. ft Porch front - 158 Chimney - 462
Kitchen
Approx. 20' x 19' Base cabs L=30' Upper cabs L=10' Built-in Pantry 60" Desk 48" Display Case
Misc
Csmt windows W/B Fireplace
