3-Bedroom Ranch House Plan — 1,184 Sq Ft (Plan 1184)
by American Design Gallery
3 split-bedroom Ranch w/ walk in pantry and Island bar kitchen
1,184Sq Ft
3Bedrooms
2Baths
1Stories
46'Width
46'Depth
Features
- ●Vaulted Ceilings
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●Walk-In Pantry
Floor Plans

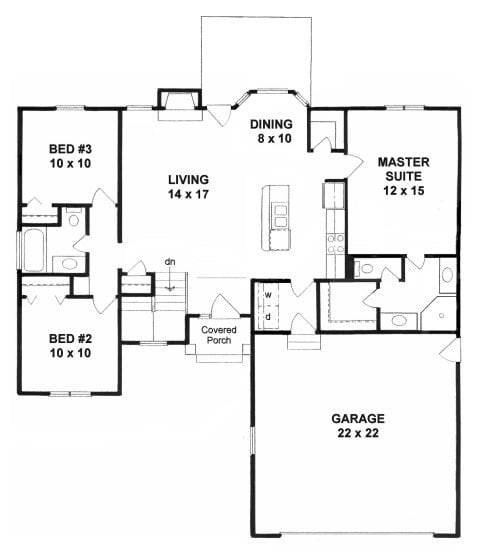

First Floor
Second Floor
Copyright 2026 ADG, Inc.

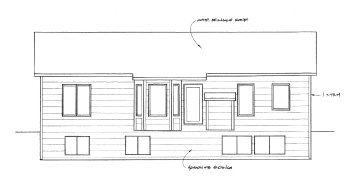

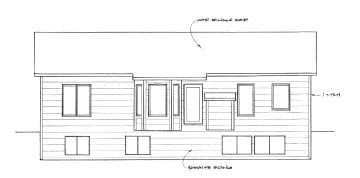

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1184 (46' × 46') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1184
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1184 sq ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
9' plates L=162' (insulated)
Ceilings
9' - Thru-out vaulted Living, Dining & Kitchen
Basement
Approx. 1078 sq ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 170 sq. ft Front only (Includes front offsets)
Kitchen
Approx. 9' x 10' Base cabs L=14' Upper cabs L=10'
Misc
Csmt windows Gas log Fireplace 48" x 48" Shower
