3-Bedroom Ranch House Plan — 1,189 Sq Ft (Plan 1189)
by American Design Gallery
Ranch style small house plan w/Island Kitchen
1,189Sq Ft
3Bedrooms
2Baths
1Stories
48'Width
49'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace

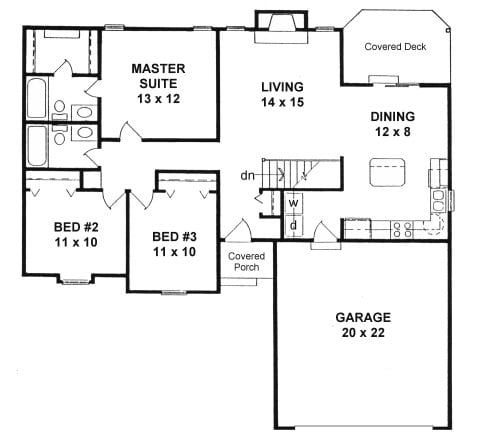

Floor Plan
Copyright 2026 ADG, Inc.

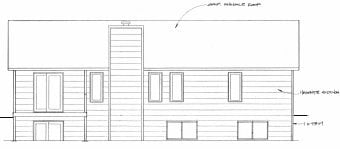

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1189 (48' × 49') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1189
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1189 sq. ft
Roof
Truss 6/12 pitch main 8/12 front main
Floor
Joist
Walls
8' plates L=155' (insulated)
Ceilings
Vaulted - Living
Basement
Approx. 1088 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 180 sq. ft Front only (Includes front offsets)
Kitchen
Approx. 12' x 9' Base cabs L=17' Upper cabs L=16' 36" Pantry
Misc
Csmt windows W/B Fireplace Note: Plans indicate "Optional" 3rd car Garage
