3-Bedroom Ranch House Plan — 1,190 Sq Ft (Plan 1190)
by American Design Gallery
Ranch style small house plan w/split bedrooms
This charming 1,190 sq ft ranch-style home offers a perfect blend of comfort and style. With three bedrooms and two bathrooms, it caters to modern family living. The inviting covered porch sets the tone for the warmth found inside. The open-concept layout features vaulted ceilings, enhancing the spacious feel of the main living areas. A cozy fireplace adds a touch of elegance to the living room, making it ideal for gatherings. The kitchen, with ample cabinetry, is both functional and stylish, adjacent to the dining area that opens to a covered deck. The master suite serves as a private retreat, complete with a tray ceiling and a generous walk-in closet. Additional features include plant shelves and a bay window, adding character and charm. The basement offers potential for expansion, with options for a recreation room, additional bedroom, and full bath. This house plan is designed for those seeking a stylish, functional, and cozy home environment, perfect for relaxation and entertaining.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Window Seat
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
Key Highlights
- ●1,190 sq ft ranch-style home
- ●3 bedrooms, 2 bathrooms
- ●Vaulted ceilings in main living areas
- ●Cozy fireplace in living room
- ●Covered porch and deck for outdoor relaxation

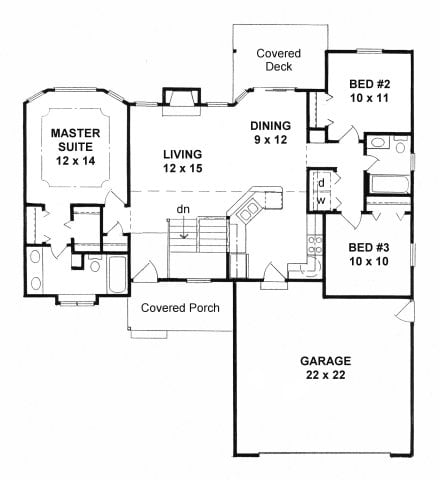

Floor Plan
Copyright 2026 ADG, Inc.

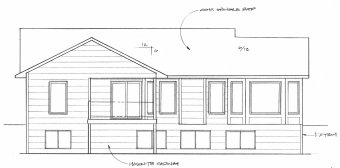

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1190 (47' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1190
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1190 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=154' (insulated)
Ceilings
Vaulted - Living, Dining & Kitchen Tray - MBR
Basement
Approx. 1040 sq. ft View-out (rear)
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 160 sq. ft Front only (includes front offsets)
Kitchen
Approx. 11' x 11' Base cabs L=14' Upper cabs L=17'
Misc
Csmt windows Gas-log Fireplace
Similar Plans
- Plan #9802 Bed 2 bath Ranch style starter home — 998 sq ft
- Plan #995Ranch style affordable house plan — 995 sq ft
- Plan #1012Cottage plan — 1012 sq ft
About Plan #1190
Exterior and Curb Appeal
The exterior of this charming ranch-style home is designed to offer welcoming curb appeal. The covered porch provides a cozy spot to enjoy the outdoors while adding a friendly touch to the façade. The front masonry work, including the bay window, enhances the architectural interest and provides a glimpse of the character within. This 47-foot wide and 50-foot deep layout is versatile enough to fit various lot sizes, making it a practical choice for many homeowners.
Main Level Layout
Inside, the 1,190 square-foot home is thoughtfully designed to maximize space and comfort. The open floor plan seamlessly connects the living room, dining area, and kitchen, all under vaulted ceilings that create an expansive atmosphere. Natural light pours through the bay window, highlighting the room's welcoming features. The living room centers around a cozy fireplace, making it the ideal spot for family gatherings or relaxation. Adjacent, the dining area provides easy access to the covered deck, a perfect venue for outdoor dining or enjoying the scenery.
Bedroom and Bathroom Arrangement
This home features three comfortable bedrooms and two bathrooms, designed for modern family living. The master suite is a luxurious retreat, featuring a tray ceiling that adds elegance and height. A spacious walk-in closet provides ample storage, while the en-suite bathroom is equipped with modern amenities for convenience and comfort. Two additional bedrooms are well-sized, sharing a full bathroom that is easily accessible for guests or family members.
Notable Features
The house plan includes several notable features that enhance its appeal and functionality. The kitchen is approximately 11 by 11 feet, boasting extensive base and upper cabinetry for all your storage needs. Additionally, plant shelves throughout the home provide opportunities for décor and personalization. The basement offers a remarkable opportunity for expansion, with options for a recreation room, an additional bedroom, and a full bath, allowing for future growth or customization.
