3-Bedroom Bi-Level House Plan — 1,198 Sq Ft (Plan 1198)
by American Design Gallery
Quad level home
1,198Sq Ft
3Bedrooms
2Baths
2Stories
42'Width
48'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

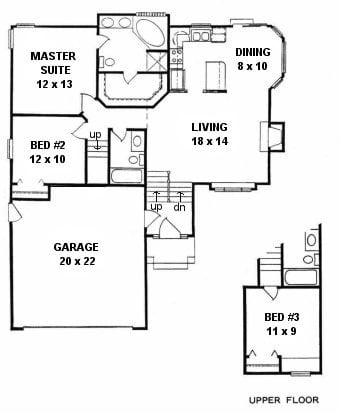

Floor Plan
Copyright 2026 ADG, Inc.

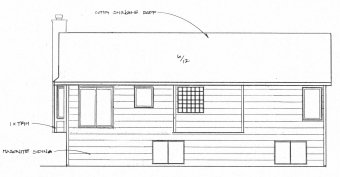

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1198 (42' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1198
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1198 sq. ft
Roof
Truss 6/12 main pitch 10/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=190' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen & MBR
Basement
Approx. 940 sq. ft View-out (full)
Opt'l Finish
Approx. 940 sq. ft View-out (full)
Masonry
Approx. 244 sq. ft Front only (includes front offsets)
Kitchen
Approx. 8' x 9' Base cabs L=14' Upper cabs L=12'
Misc
Csmt windows W/B Fireplace
