3-Bedroom Ranch House Plan — 1,228 Sq Ft (Plan 1228)
by American Design Gallery
2 bedroom wide lot Ranch
Specifications
- ●1228 sq ft
- ●62' wide x 36' deep
- ●3 bedrooms
- ●2 baths
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
Floor Plan
Copyright 2026 ADG, Inc.

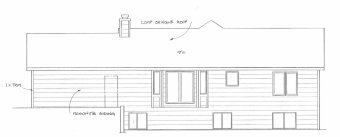

Elevation
Loading...
Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1228 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss
Walls
8' plates L=156' (insulated)
Ceilings
Vaulted - Living, Dining, MBR & Bed. #2
Basement
Approx. 1120 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 404 sq. ft Front only (includes front offsets)
Kitchen
Approx. 10' x 10' Base cabs L=18' Upper cabs L=14'
Misc
Csmt windows W/B Fireplace
