3-Bedroom Ranch House Plan — 1,336 Sq Ft (Plan 1336)
by American Design Gallery
3 bedroom Ranch w/ 3-Car Garage and walk-up walk-out basment
1,336Sq Ft
3Bedrooms
2Baths
1Stories
63'Width
48'Depth
Features
- ●Plant Shelves
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●10' Ceilings

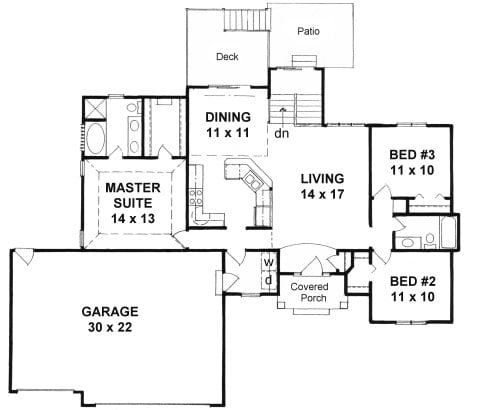

Floor Plan
Copyright 2026 ADG, Inc.

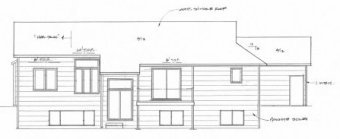

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1336 (63' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1336
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1336 sq. ft
Roof
Truss 6/12 main pitch 7/12 & 8/12 front
Floor
Truss or TJI
Walls
8' & 10' plates L=176'' (insulated)
Ceilings
10'- Living, Kitchen, Foyer & Util. Vaulted - Dining Coffered - MBR
Basement
Approx. 1220 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 250 sq. ft (120 sq ft brick & 130 sq ft stone) Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=17' Upper cabs L=17'
Misc
Csmt windows
