Plan #1338

Plan # 1338 - Ranch | Large render view

Specifications

  • 1338 sq ft
  • 52′ wide x 48′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Bay Window
  • Covered Porch
  • Walk-In Closet
  • Fireplace

Floor Plan

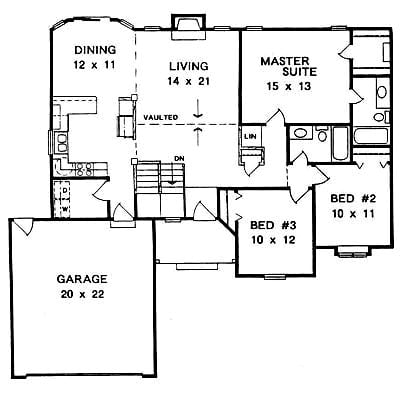

Plan # 1338 - Ranch | First floor plan
Copyright 1992 ADG, Inc.

Elevation

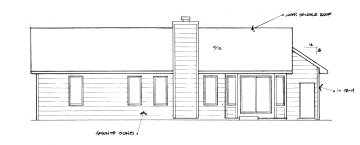

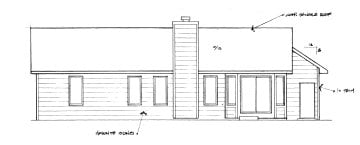

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1338 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' plates
L=162' (insulated)

Ceilings

Vaulted - Living
Truncated - MBR

Basement

Approx. 1214 sq. ft
Full Basement

(Opt'l Finish)

Rec room
1 Bedroom
Full Bath

Masonry

Approx. 384 sq. ft
Front only (includes
front offsets)

Kitchen

Approx. 11' x 11'
Base cabs L=16'
Upper cabs L=14'
24" Pantry

Misc

Csmt windows
W/B Fireplace

NOTE:
Plans include an "opt l" 8/12 Hip roof
