3-Bedroom Ranch House Plan — 1,461 Sq Ft (Plan 1461)
by American Design Gallery
3 bedroom narrow lot Ranch w/ Island Bar 3-Car Garage
1,461Sq Ft
3Bedrooms
2Baths
1Stories
50'Width
52'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

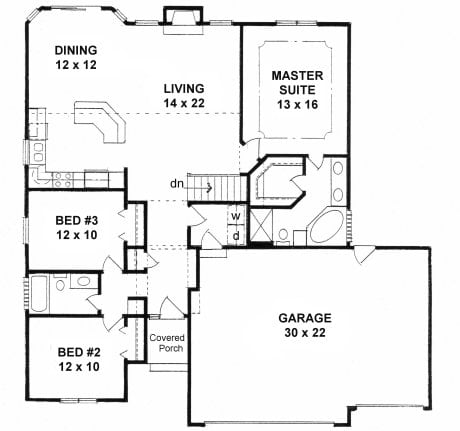

Floor Plan
Copyright 2026 ADG, Inc.

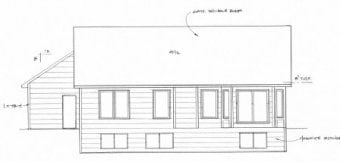

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1461 (50' × 52') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1461
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1461 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates L=184' (insulated)
Ceilings
Vaulted - Living, Dining & kitchen Tray - MBR 10' - Bed #2 16' - Foyer (opt'l)
Basement
Approx. 1328 sq. ft View-out
Opt'l Finish
Rec room 1 or 2 Bedrooms Full Bath
Masonry
Approx. 194 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12'' x 10' Base cabs L=18' Upper cabs L=14' 24" Pantry
Misc
Csmt windows Gas Log Fireplace
