2-Bedroom Duplex House Plan — 1,462 Sq Ft (Plan 1462)
by American Design Gallery|Small Duplex Plan with Garage, Storage and Safe room
Plan 1462 offers a practical and stylish duplex design, providing a total of 1,462 square feet of living space. Each unit within the duplex features two bedrooms and one bathroom, making it an excellent option for small families or as an investment property. The thoughtfully designed layout includes vaulted ceilings in the main living areas, creating a spacious and airy ambiance. Notable features such as plant shelves and a covered porch enhance the charm and functionality of the home. The master bedroom in each unit includes a walk-in closet, offering ample storage space. This duplex is constructed on a slab-on-grade foundation, ensuring durability and ease of maintenance. With its symmetrical facade and appealing curb appeal, this duplex house plan is both attractive and efficient. The combination of masonry and siding on the exterior, along with a series of gables, adds architectural interest and a welcoming presence. This design is ideal for those seeking a comfortable and efficient living solution.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Covered Porch
- ●Walk-In Closet
Key Highlights
- ●1,462 sq. ft. total living space
- ●2 bedrooms and 1 bathroom per unit
- ●Vaulted ceilings in main living areas
- ●Covered porch for outdoor enjoyment
- ●Master suite with walk-in closet
- ●Symmetrical facade with appealing curb appeal

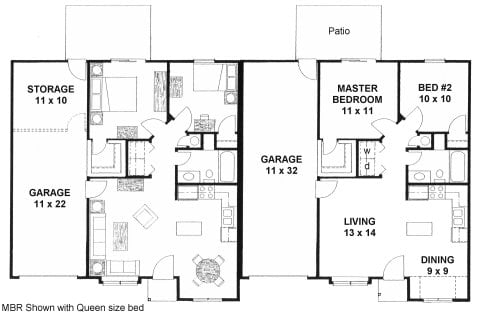

Floor Plan
Copyright 2026 ADG, Inc.

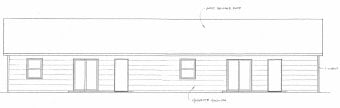

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1462 (66' × 35') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1462
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1462 sq. ft 731 each unit
Roof
Truss 5/12 main pitch 12/12 front gables
Floor
Slab on grade
Walls
8' plates L=193' (insulated, including party wall)
Ceilings
Vaulted - Living, Dining & MBR
Masonry
Approx. 276 sq. ft Front only (includes front offsets)
Kitchen
Approx. 9' x 8' Base cabs L=10' Upper cabs L=11'
Misc
Master closet safe-room
Similar Plans
No Similar Plans have been added
About Plan #1462
Exterior and Curb Appeal
Plan 1462 showcases a beautifully crafted duplex design with a symmetrical facade that enhances its curb appeal. The exterior blends masonry and siding, creating a visually appealing and durable finish. The front elevation is adorned with a series of gables, each with a 12/12 pitch, adding architectural depth and a touch of elegance. The covered porch welcomes residents and guests alike, providing a charming space to enjoy the outdoors.
Main Level Layout
Each unit within this duplex offers a well-organized floor plan, maximizing the use of space across its 731 square feet per unit. The main level features an open-concept living and dining area, where vaulted ceilings create a sense of spaciousness and light. This design ensures a seamless flow between spaces, making it ideal for both daily living and entertaining. The slab-on-grade foundation ensures stability and low maintenance, making it a practical choice for homeowners.
Bedroom and Bathroom Arrangement
The bedroom layout in each unit is both functional and comfortable, featuring two bedrooms and one bathroom. The master bedroom, measuring 11' x 11', is equipped with a walk-in closet, offering generous storage space. The second bedroom is versatile, suitable for guests, children, or a home office. The shared bathroom is centrally located, providing easy access from all areas of the home. This arrangement ensures privacy and convenience for all residents.
Notable Features
This duplex is designed with several standout features that enhance its livability and appeal. Vaulted ceilings in the living, dining, and master bedroom areas contribute to the open and airy feel of the home. Plant shelves throughout offer opportunities for decorative touches, adding personal style to the space. The master closet also serves as a safe-room, providing an added layer of security. Additionally, the kitchen in each unit, approximately 9' x 8', is efficiently designed with ample cabinet space, making meal preparation a breeze.
