3-Bedroom Ranch House Plan — 1,469 Sq Ft (Plan 1469)
by American Design Gallery
3 Bed 2 Bath Ranch 3 car garage Craftsman
1,469Sq Ft
3Bedrooms
2Baths
1Stories
52'Width
56'Depth
Features
- ●Plant Shelves
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●Walk-In Pantry

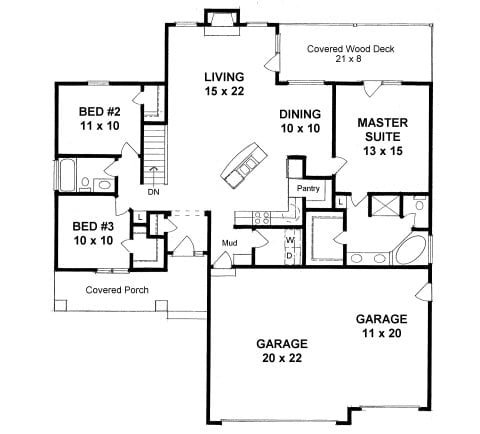

Floor Plan
Copyright 2026 ADG, Inc.

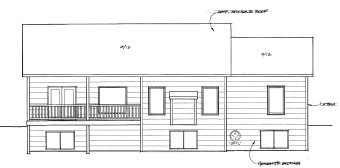

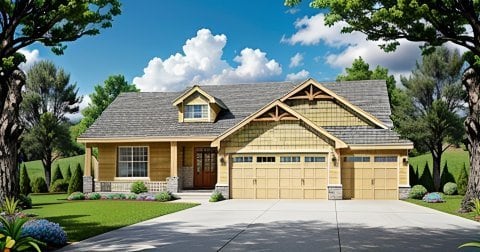

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1469 (52' × 56') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1469
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1469
Roof
Truss 6/12 main pitch 8/12 front pitches
Floor
Truss or TJI
Walls
9' plates L=176' (insulated)
Ceilings
9' Thru-out
Basement
Approx. 1352 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 180 sq. ft Front only (includes front offsets)

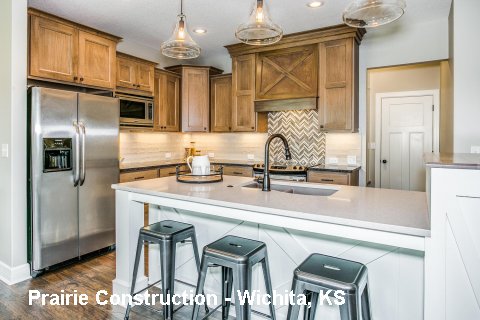

Kitchen
Approx. 11' x 11' Base cabs L=15' Upper cabs L=14'
Misc
Gas-log Fireplace
Similar Plans
- Plan #12713 bedroom Ranch w/ side load Garage — 1271 sq ft
- Plan #12723 bedroom wide Ranch — 1272 sq ft
- Plan #12732 bedroom w/ walk-in closets and bay windows — 1273 sq ft
About Plan #1469

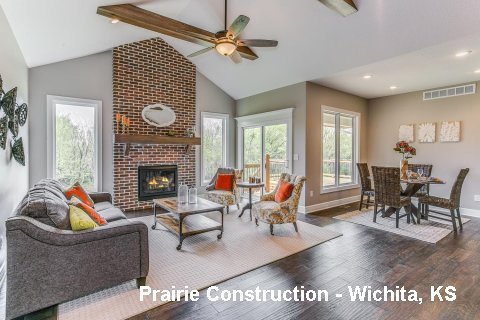

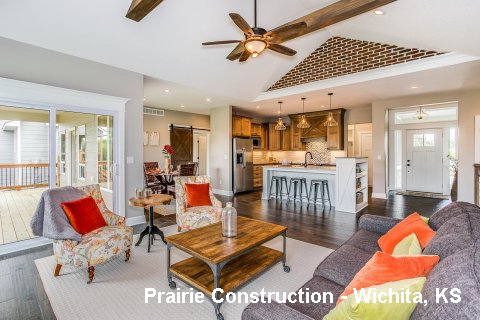

This plan has 9' ceilings thru-out the house, the vaulted Living room shown in the photo's was one of a few modifications done by the general contractor.
