2-Bedroom Ranch House Plan — 1,470 Sq Ft (Plan 1470)
by American Design Gallery
2 Bed 2 Bath Open Ranch with three car garage
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Window Seat
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●Walk-In Pantry

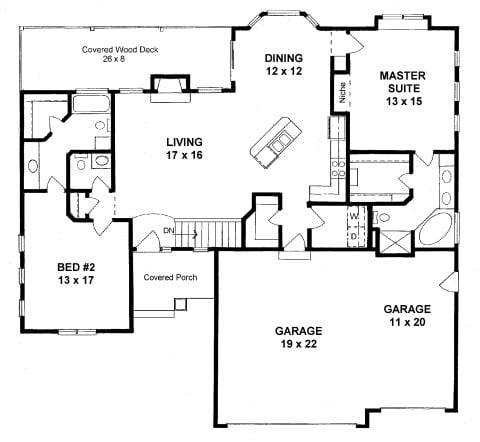

Floor Plan
Copyright 2026 ADG, Inc.

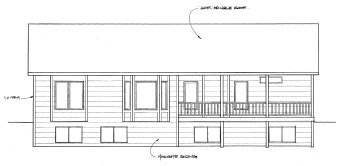

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1470 (54' × 52') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1470
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1470
Roof
Truss 6/12 main pitch 7.5 front pitches
Floor
Truss or TJI
Walls
9' plates L=188' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen & MBR
Basement
Approx. 1316 sq. ft View-out (rear)
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 392 sq. ft Front only (includes front offsets)
Kitchen
Approx. 11' x 11' Base cabs L=15' Upper cabs L=14'
Misc
Csmt windows Gas-log Fireplace
Similar Plans
- Plan #12713 bedroom Ranch w/ side load Garage — 1271 sq ft
- Plan #12723 bedroom wide Ranch — 1272 sq ft
- Plan #12732 bedroom w/ walk-in closets and bay windows — 1273 sq ft
About Plan #1470
Plan #1470 is designed for split-bedroom privacy and an open living area with access to the covered rear deck. The Kitchen has an Island bar and a walk-in pantry, the Master Suite features a window seat and a furniture niche. Nine foot ceilings thru-out the house are raised even more with vaults in the Living, Dining, Kitchen and Master Suite. Bedroom #2 is also a Suite featuring private bath and walk-in closet.
