3-Bedroom Ranch House Plan — 1,491 Sq Ft (Plan 1491)
by American Design Gallery
3 bedroom Ranch w/ Hearthroom and side load Garage
1,491Sq Ft
3Bedrooms
2Baths
1Stories
54'Width
56'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace

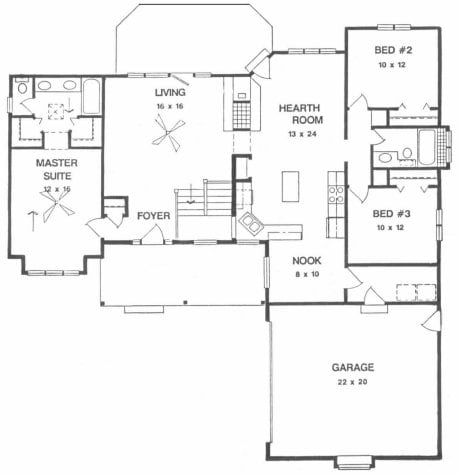

Floor Plan
Copyright 2026 ADG, Inc.
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1491 (54' × 56') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1491
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1491 sq. ft
Roof
Truss 8/12 pitch
Floor
Truss or TJI
Walls
8' plates L=188' (insulated)
Ceilings
10' - Living, Dining & Kitchen Vaulted - MBR & Bath
Basement
Approx. 1360 sq. ft Full Basement
Opt'l Finish
Rec room 1 Bedroom Full Bath
Masonry
Approx. 232 sq. ft Front only (includes front offsets)
Kitchen
Approx. 14' x 9' Base cabs L=21' Upper cabs L=17' 36" Pantry
Misc
Csmt windows W/B Fireplace
