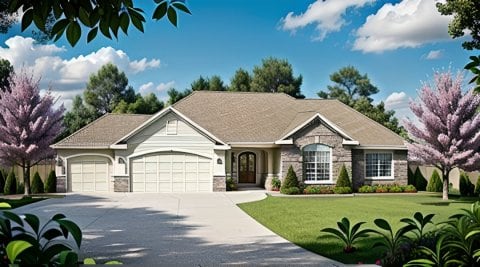

3-Bedroom Ranch House Plan — 1,508 Sq Ft (Plan 1508)
by American Design Gallery
3 bedroom Ranch w/ Bay windows, Island Kitchen Bar and 3 car garage
1,508Sq Ft
3Bedrooms
2.5Baths
1Stories
64'Width
48'Depth
Features
- ●Vaulted Ceilings
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings

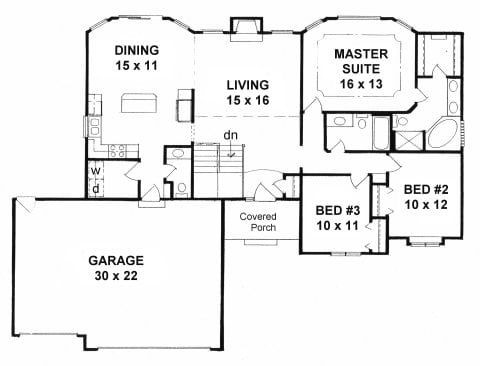

Floor Plan
Copyright 2026 ADG, Inc.

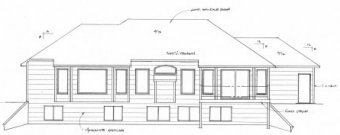

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1508 (64' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1508
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1508 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' & 9' plates L=180' (insulated)
Ceilings
Vaulted - Living 9'- Kitchen, Dining , MBR & Bed #3
Basement
Approx. 1388 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 460 sq. ft Front only (includes front offsets
Kitchen
Approx. 15' x 9' Base cabs L=17' Upper cabs L=14' 18" Pantry
Misc
Csmt windows Gas-log Fireplace
