3-Bedroom Ranch House Plan — 1,527 Sq Ft (Plan 1527)
by American Design Gallery
3 split-bedroom Ranch w/ walk in pantry and walk in closets
1,527Sq Ft
3Bedrooms
2.5Baths
1Stories
60'Width
46'Depth
Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry

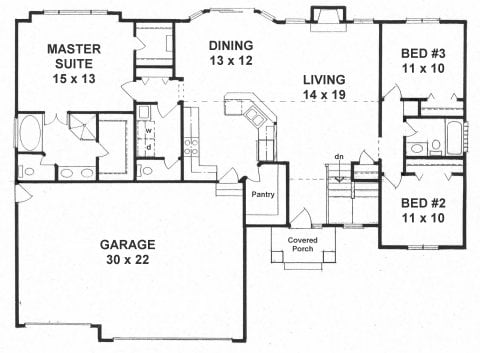

Floor Plan
Copyright 2026 ADG, Inc.

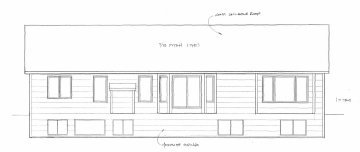

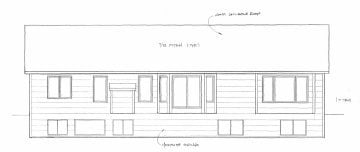

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1527 (60' × 46') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1527
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1527 sq. ft
Roof
Truss 7/12 pitch
Floor
Truss or TJI
Walls
8' plates L=185' (insulated)
Ceilings
Vaulted - Living, Dining, Kitchen & MBR 9' - Foyer & Bed #2
Basement
Approx. 1402 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 132 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 11' Base cabs L=16' Upper cabs L=17'
Misc
Csmt windows Gas log Fireplace 42"shower (MBR)
