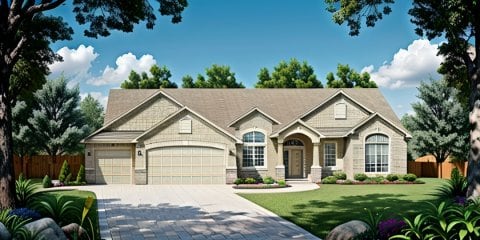

3-Bedroom Ranch House Plan — 1,587 Sq Ft (Plan 1587)
by American Design Gallery
3 split-bedroom Ranch w/ 3 Car Garage and Walk-in Pantry
1,587Sq Ft
3Bedrooms
2Baths
1Stories
64'Width
46'Depth
Features
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●Walk-In Pantry

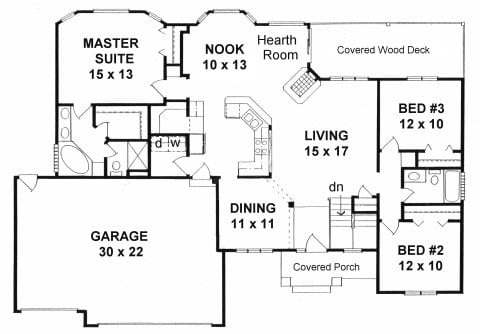

Floor Plan
Copyright 2026 ADG, Inc.

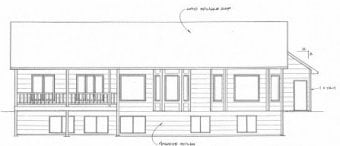

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1587 (64' × 46') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1587
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓One-time purchase, no recurring fees
Details
Heated Area
1587 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
9' plates L=202' (insulated)
Ceilings
9' - Thru-out
Basement
Approx. 1426 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 260 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 11' Base cabs L=14' Upper cabs L=14'
Misc
Csmt windows Gas-log Fireplace
